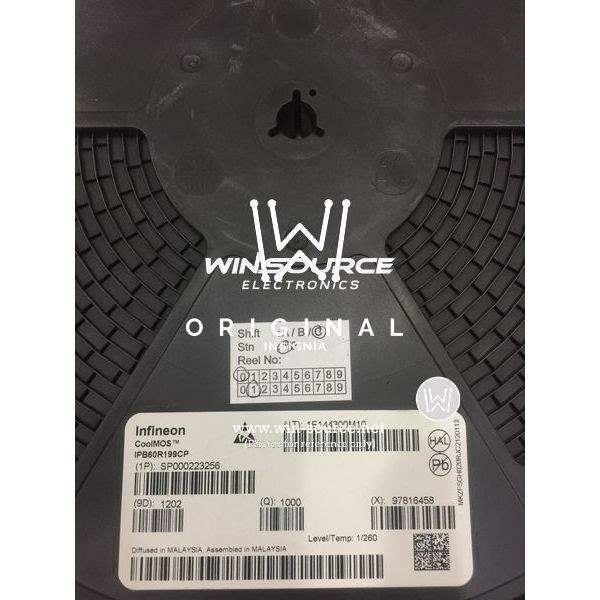

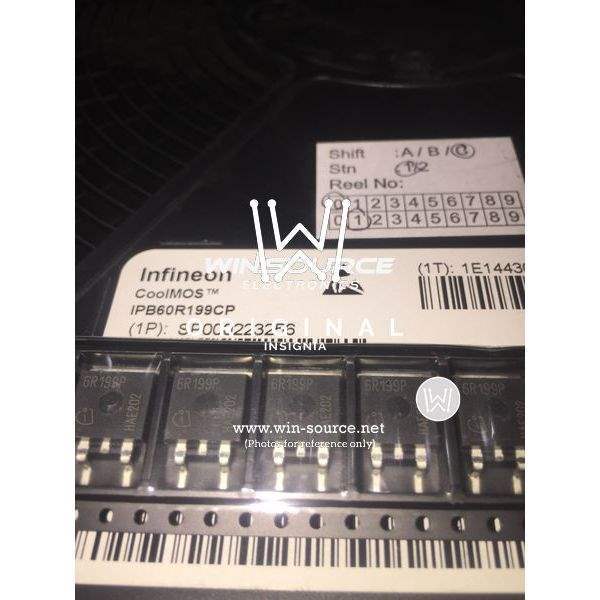

IPB60R199CP Infineon Technologies IPB60R199CP real image IPB60R199CP label picture
Same model may have multiple batches, images only for reference.
IPB60R199CP Infineon Technologies IPB60R199CP real image IPB60R199CP label picture
IPB60R199CP Infineon Technologies IPB60R199CP real image IPB60R199CP label picture
Same model may have multiple batches, images only for reference.

IPB60R199CP

Part No IPB60R199CP
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 650V 16A TO-263
Datasheet
IPB60R199CP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 650V
Continuous Drain Current at 25°C 16A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 3.5V @ 660μA
Max Gate Charge 43nC @ 10V
Max Input Capacitance 1520pF @ 100V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 139W (Tc)
Maximum Rds On at Id,Vgs 199 mOhm @ 9.9A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-TO263-3-2
Dimension TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Win Source Part Number 017321-IPB60R199CP
Family Name IPB60R199CP
Introduction Date June 19, 2006
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2019
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IPB60R199CP CAD Model

Description

The Infineon Technologies IPB60R199CP is a N-Channel MOSFET designed for use in discrete semiconductor products.

  • Drain-Source Breakdown Voltage: 650V
  • Continuous Drain Current: 16A (Tc)
  • Maximum Rds On @ Id,Vgs: 199 mOhm @ 9.9A, 10V
  • Maximum Gate-Source Voltage: ±20V
  • Maximum Gate Charge: 43nC @ 10V
  • Package: PG-TO263-3-2
  • Mounting: SMD (SMT)
  • Power Dissipation: 139W (Tc)
  • Temperature Range: -55°C to 150°C (TJ)
  • Supply and Demand Status: Sufficient
