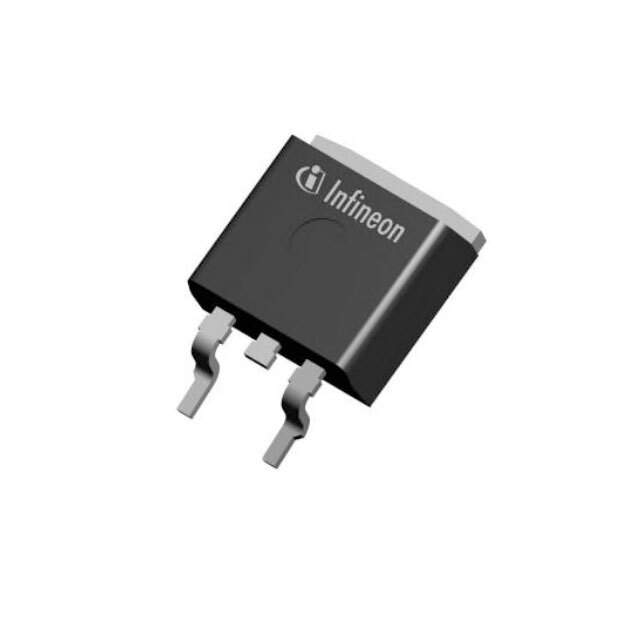

IPB720P15LMATMA1 Real Image1 IPB720P15LMATMA1 Real Image2
Same model may have multiple batches, images only for reference.
IPB720P15LMATMA1 Real Image1 IPB720P15LMATMA1 Real Image2
IPB720P15LMATMA1 Real Image1 IPB720P15LMATMA1 Real Image2
Same model may have multiple batches, images only for reference.

IPB720P15LMATMA1

Part No IPB720P15LMATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description TRENCH >=100V PG-TO263-3 / P-Channel 150 V 4.6A (Ta), 41A (Tc) 3.8W (Ta), 300W (Tc) Surface Mount PG-TO263-3
Datasheet
IPB720P15LMATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Infineon Technologies
Series OptiMOS™
Package Tape & Reel
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 150 V
Current - Continuous Drain (Id) @ 25°C 4.6A (Ta) , 41A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 72mOhm @ 37A, 10V
Vgs(th) (Max) @ Id 2V @ 5.55mA
Gate Charge (Qg) (Max) @ Vgs 224 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 11000 pF @ 75 V
Power Dissipation (Max) 3.8W (Ta) , 300W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-TO263-3
Package / Case TO-263-3, D²Pak (2 Leads + Tab) , TO-263AB
Base Product Number IPB720P
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1351359-IPB720P15LMATMA1
Ultra Librarian 3D Model Ultra Librarian IPB720P15LMATMA1 CAD Model

Description

The Infineon IPB720P15LMATMA1 is a P-Channel MOSFET transistor from the OptiMOS™ series.

  • Drain to Source Voltage (Vdss): 150V
  • Power Dissipation: 3.8W (Ta), 300W (Tc)
  • Voltage Supply Range: ±20V
  • Temperature Range: -55°C ~ 175°C (TJ)
  • Package/Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Mounting Type: Surface Mount
