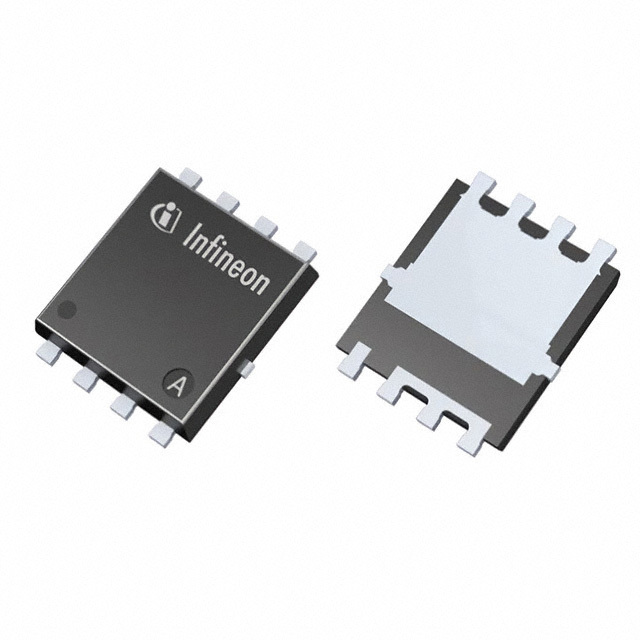

The Infineon Technologies OptiMOS™ 1278377-IPC100N04S5L1R1ATMA1 is an N-Channel MOSFET transistor designed for use in discrete semiconductor products such as transistors and FETs.

• Manufacturer: Infineon Technologies
• Series: OptiMOS™
• MOSFET Type: N-Channel
• Drain to Source Voltage: 40 V
• Continuous Drain Current: 100A (Tc)
• Rds On (Max): 1.1mOhm @ 50A, 10V
• Gate Charge (Qg) (Max) @ Vgs: 140 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 8250 pF @ 25 V
• Operating Temperature Range: -55°C to 175°C (TJ)
• Status: Not for new designs
