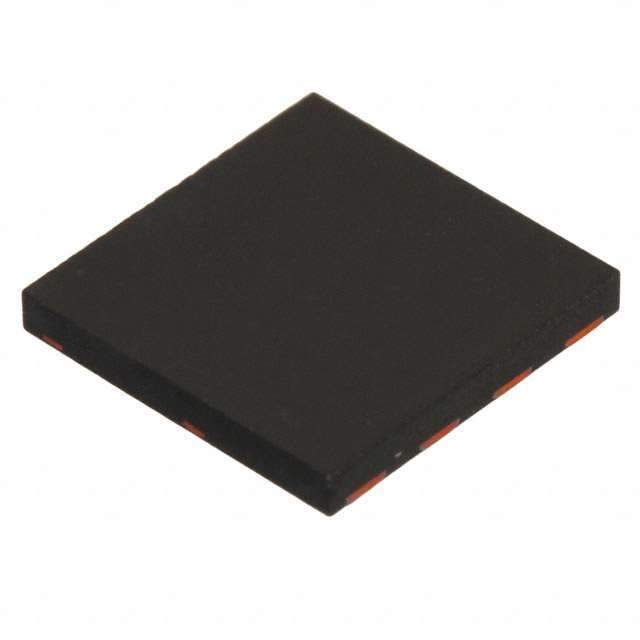

IPL60R299CP Real Image
Same model may have multiple batches, images only for reference.

IPL60R299CP

Part No IPL60R299CP
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 650V 11.1A 4VSON
Datasheet
IPL60R299CP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 650V
Continuous Drain Current at 25°C 11.1A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 3.5V @ 440μA
Max Gate Charge 22nC @ 10V
Max Input Capacitance 1100pF @ 100V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 96W (Tc)
Maximum Rds On at Id,Vgs 299 mOhm @ 6.6A, 10V
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-VSON-4
Dimension 4-PowerTSFN
Win Source Part Number 1045943-IPL60R299CP
Family Name IPL60R299CP
Introduction Date April 28, 2010
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2019
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IPL60R299CP CAD Model

Description

The Infineon Technologies IPL60R299CP is an N-channel MOSFET with a breakdown voltage of 650V and a continuous drain current of 11.1A (Tc).

  • Maximum Power Dissipation: 96W (Tc)
  • Package: PG-VSON-4
  • Gate-Source Threshold Voltage: 3.5V @ 440μA
  • Maximum Rds On @ Id,Vgs: 299 mOhm @ 6.6A, 10V
  • Operating Temperature Range: -40°C to 150°C (TJ)
  • Supply and Demand Status: Balanced
  • Compliance: Halogen-free standards
