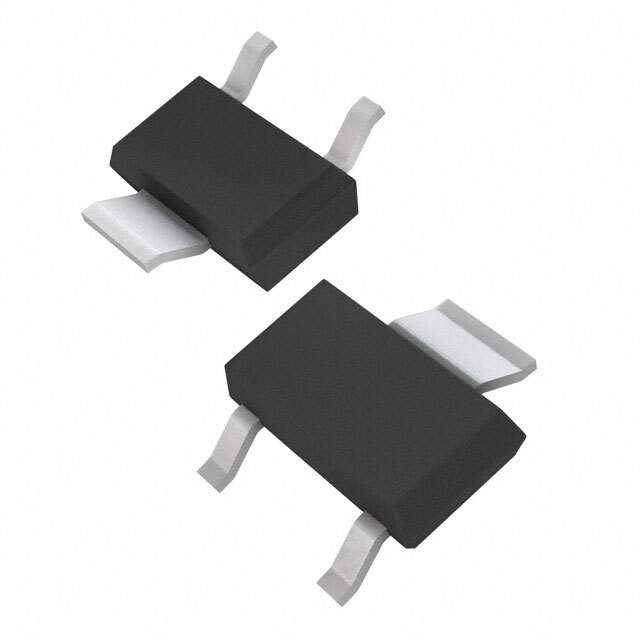

IPN70R2K0P7SATMA1

Name: IPN70R2K0P7SATMA1
Brand: Infineon Technologies
SKU: 1337003
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IPN70R2K0P7SATMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 700V 3A SOT223 / N-Channel 700 V 3A (Tc) 6W (Tc) Surface Mount PG-SOT223
Datasheet	IPN70R2K0P7SATMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Infineon Technologies
Series	CoolMOS™ P7
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	700 V
Current - Continuous Drain (Id) @ 25°C	3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	3.5V @ 30µA
Gate Charge (Qg) (Max) @ Vgs	3.8 nC @ 10 V
Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	130 pF @ 400 V
Power Dissipation (Max)	6W (Tc)
Temperature Range - Operating	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-SOT223
Package / Case	TO-261-4, TO-261AA
Base Product Number	IPN70R2
Standard Package	3,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1337003-IPN70R2K0P7SATMA1
Ultra Librarian 3D Model	Ultra Librarian IPN70R2K0P7SATMA1 CAD Model

Alternative Products

Description

The IPN70R2K0P7SATMA1 is a discrete semiconductor product designed for use in single FET and MOSFET applications.

Device Type: MOSFET
Channel Type: N-Channel
Vdss: 700V
Power Dissipation: 6W (Tc)
Id: 3A (Tc)
Rds On (Max): 2Ohm @ 500mA, 10V
Vgs(th) (Max): 3.5V @ 30µA
Qg (Max): 3.8 nC @ 10 V
Ciss (Max): 130 pF @ 400 V
Mounting Type: Surface Mount
Package/Case: TO-261-4, TO-261AA
Manufacturer: Infineon Technologies
