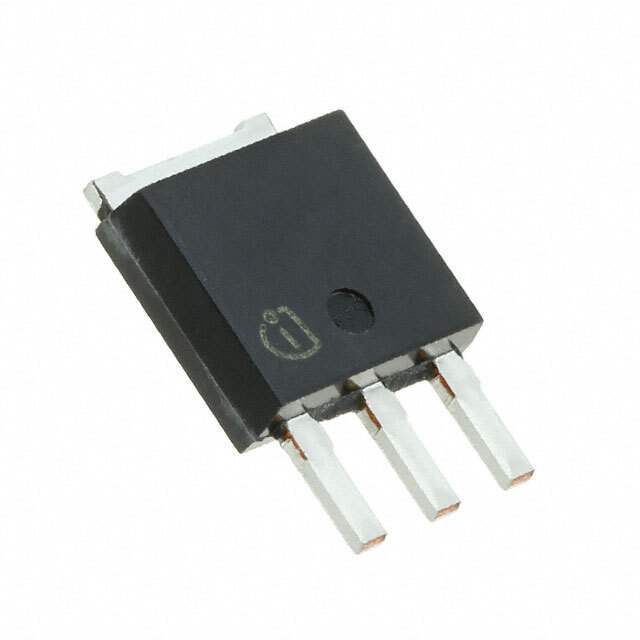

Infineon Technologies presents an obsolete(EOL) electronic component with an Id of 165851.

• Supply and Demand Status: balance
• Packaging: Tube/Rail
• Mounting: Through Hole
• Technology: MOSFET
• Polarity: N-Channel
• Power Dissipation (Max): 83W (Tc)
• Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
• Temperature Range - Operating: -55°C to 175°C (TJ)
• Case / Package: PG-TO251-3
• Dimension: TO-251-3 Stub Leads, IPak
• Drain-Source Breakdown Voltage: 25V
• Continuous Drain Current @ 25°C: 50A (Tc)
• Gate-Source Threshold Voltage: 2V @ 40μA
• Max Gate Charge: 22nC @ 5V
• Max Input Capacitance: 2653pF @ 15V
• Maximum Gate-Source Voltage: ±20V
• Maximum Rds On @ Id,Vgs: 5.9 mOhm @ 30A, 10V
