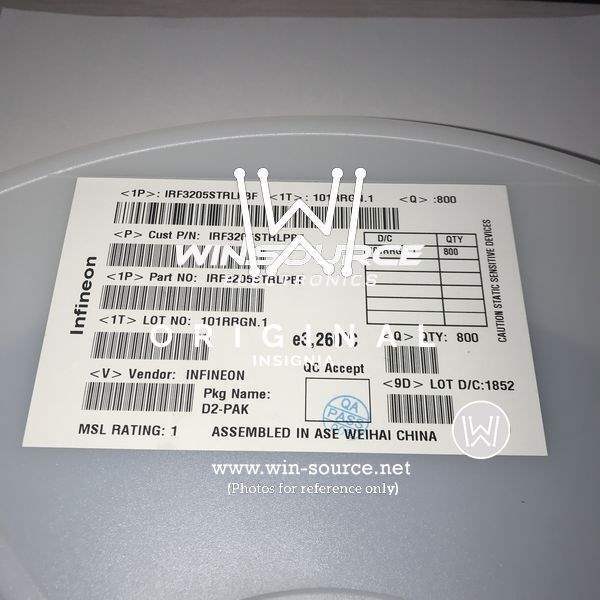

IRF3205STRLPBF Infineon Technologies IRF3205STRLPBF real image243 IRF3205STRLPBF real image IRF3205STRLPBF label picture IRF3205STRLPBF real image 2
Same model may have multiple batches, images only for reference.
IRF3205STRLPBF Infineon Technologies IRF3205STRLPBF real image243 IRF3205STRLPBF real image IRF3205STRLPBF label picture IRF3205STRLPBF real image 2
IRF3205STRLPBF Infineon Technologies IRF3205STRLPBF real image243 IRF3205STRLPBF real image IRF3205STRLPBF label picture IRF3205STRLPBF real image 2
Same model may have multiple batches, images only for reference.

IRF3205STRLPBF

Part No IRF3205STRLPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 55V 110A D2PAK
Datasheet
IRF3205STRLPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 55V
Continuous Drain Current at 25°C 110A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 146nC @ 10V
Max Input Capacitance 3247pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 200W (Tc)
Maximum Rds On at Id,Vgs 8 mOhm @ 62A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package D2PAK
Dimension TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Win Source Part Number 017422-IRF3205STRLPBF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name IRF3205
Introduction Date March 11, 2004
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian IRF3205STRLPBF CAD Model

Description

The IRF3205STRLPBF is a high-popularity N-Channel MOSFET transistor manufactured by Infineon Technologies.

  • Package: D2PAK package
  • Mounting Type: SMD type
  • Drain-Source Breakdown Voltage: 55V
  • Continuous Drain Current: 110A (Tc) @ 25°C
  • Supply and Demand Status: sufficient
  • Additional Information: For more information about this product, please visit the manufacturer's website
