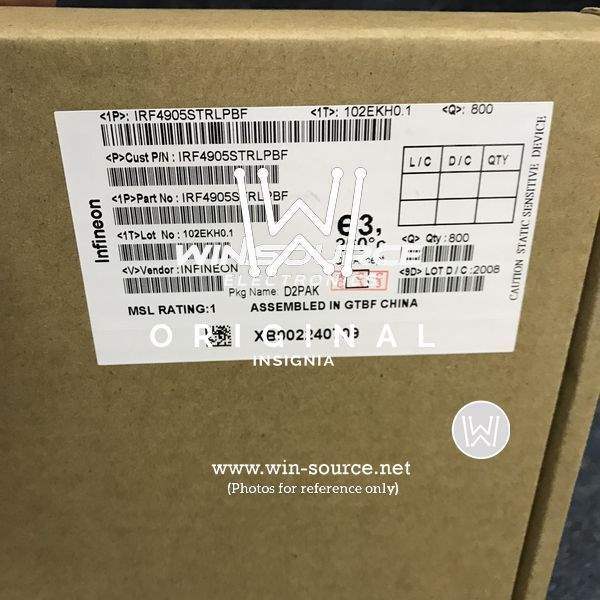

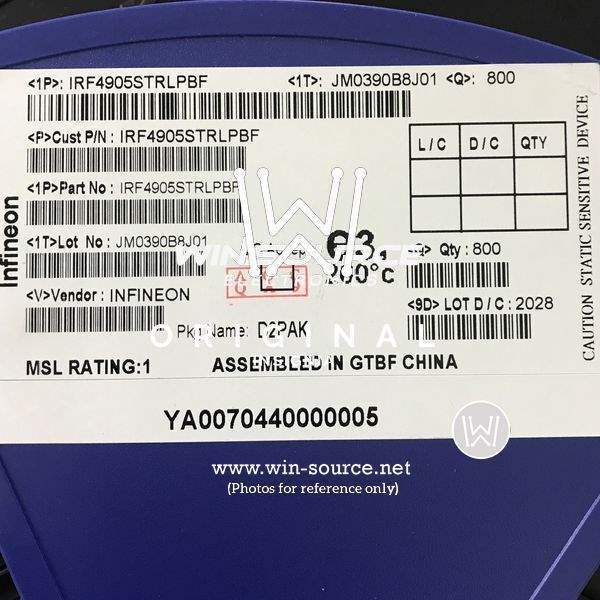

Same model may have multiple batches, images only for reference.

IRF4905STRLPBF

Name: IRF4905STRLPBF
Brand: Infineon Technologies
SKU: 159546
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRF4905STRLPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET P-CH 55V 42A D2PAK
Datasheet	IRF4905STRLPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Active
Polarity	P-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	55V
Continuous Drain Current at 25°C	42A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Gate-Source Threshold Voltage	4V @ 250μA
Max Gate Charge	180nC @ 10V
Max Input Capacitance	3500pF @ 25V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	170W (Tc)
Maximum Rds On at Id,Vgs	20 mOhm @ 42A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	D2PAK
Dimension	TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Win Source Part Number	017430-IRF4905STRLPBF
Family Name	IRF4905S
Introduction Date	August 25, 1997
ECCN	EAR99
Country of Origin	Republic of Korea
Halogen Free	Compliant
Estimated EOL Date	2024
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian IRF4905STRLPBF CAD Model

Alternative Products

Description

The Infineon Technologies electronic component with the Win Source Part Number 017430-IRF4905STRLPBF is a P-Channel MOSFET with a maximum power dissipation of 170W (Tc).

Maximum Power Dissipation: 170W (Tc)
Maximum Drain-Source Breakdown Voltage: 55V
Continuous Drain Current: 42A (Tc)
Maximum Rds On @ Id, Vgs: 20 mOhm @ 42A, 10V
