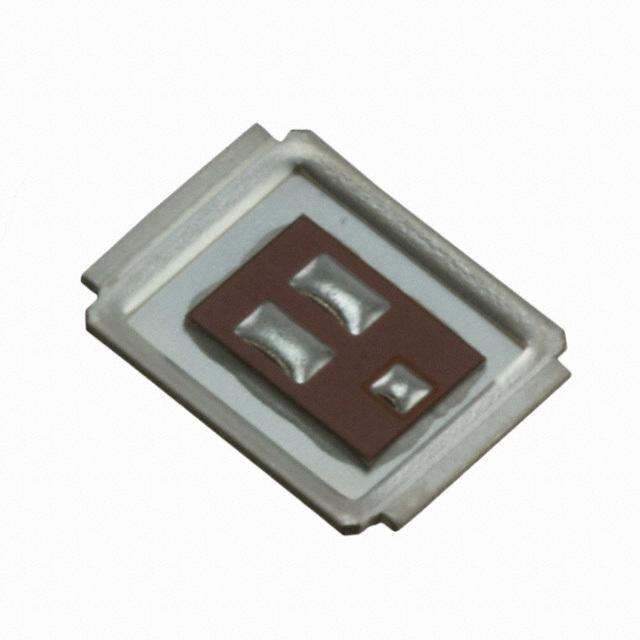

Same model may have multiple batches, images only for reference.

IRF6628TRPBF

Name: IRF6628TRPBF
Brand: Infineon Technologies
SKU: 159726
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IRF6628TRPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 25V 27A DIRECTFET
Datasheet	IRF6628TRPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Obsolete(EOL)
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	25V
Continuous Drain Current at 25°C	27A (Ta), 160A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	2.35V @ 100μA
Max Gate Charge	47nC @ 4.5V
Max Input Capacitance	3770pF @ 15V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	2.8W (Ta), 96W (Tc)
Maximum Rds On at Id,Vgs	2.5 mOhm @ 27A, 10V
Temperature Range - Operating	-40°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	DIRECTFET MX
Dimension	DirectFET Isometric MX
Win Source Part Number	131269-IRF6628TRPBF
Family Name	IRF6628
Introduction Date	April 02, 2009
ECCN	EAR99
Country of Origin	Mexico
Halogen Free	Compliant
Estimated EOL Date	Obsolete
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Application Field	Used in Automotive, Power Management
Ultra Librarian 3D Model	Ultra Librarian IRF6628TRPBF CAD Model

Alternative Products

Description

The supply and demand status is limited.

Application: The product is a MOSFET transistor that is designed for use in automotive and power management applications.
Maximum Power Dissipation: 2.8W
Drain-Source Breakdown Voltage: 30V
Package: The product has a unique DirectFET Isometric MX package
Maximum Rds On at Id,Vgs: 2.5 mOhm @ 27A, 10V.
