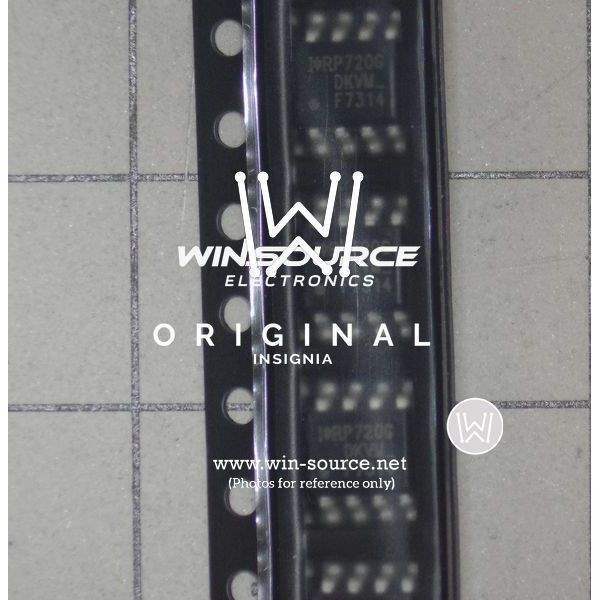

IRF7314TRPBF

Name: IRF7314TRPBF
Brand: Infineon Technologies
SKU: 159867
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRF7314TRPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	Trans MOSFET P-CH Si 20V 5.3A 8-Pin SOIC N T/R / MOSFET 2P-CH 20V 5.3A 8-SOIC
Datasheet	IRF7314TRPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain-Source Breakdown Voltage	20V
Continuous Drain Current at 25°C	5.3A
Maximum Rds On at Id,Vgs	58 mOhm @ 2.9A, 4.5V
Gate-Source Threshold Voltage	700mV @ 250μA
Max Gate Charge	29nC @ 4.5V
Max Input Capacitance	780pF @ 15V
Maximum Power Dissipation	2W
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	8-SO
Win Source Part Number	017502-IRF7314TRPBF
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	IRF7314
Introduction Date	November 18, 1997
ECCN	EAR99
Country of Origin	China, Philippines
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian IRF7314TRPBF CAD Model

Description

The Infineon Technologies IRF7314TRPBF is a 2 P-Channel (Dual) Logic Level Gate FET, which is widely used in Discrete Semiconductor Products.

Drain-Source Breakdown Voltage: 20V
Continuous Drain Current: 5.3A @ 25°C
Maximum Power Dissipation: 2W
Gate-Source Threshold Voltage: 700mV @ 250μA
Max Gate Charge: 29nC @ 4.5V
Maximum Rds On at Id,Vgs: 58 mOhm @ 2.9A, 4.5V
Package: 8-SO package
Temperature Range: -55°C to 150°C (TJ)
Popularity: High
Supply and Demand Status: Balanced
Estimated EOL Date: 2027
