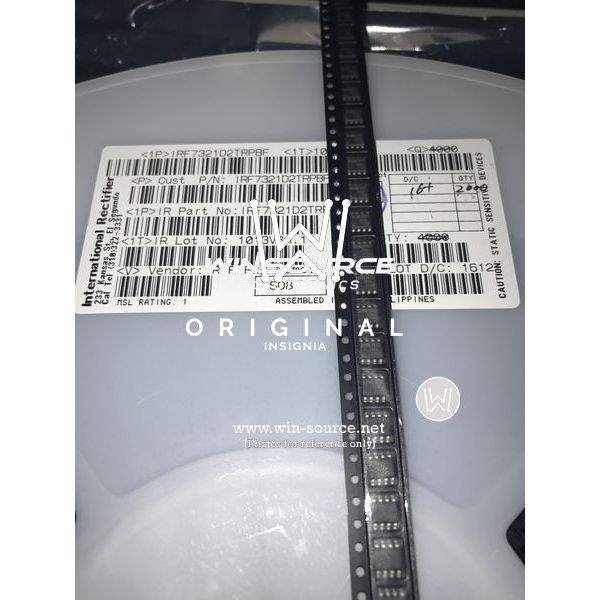

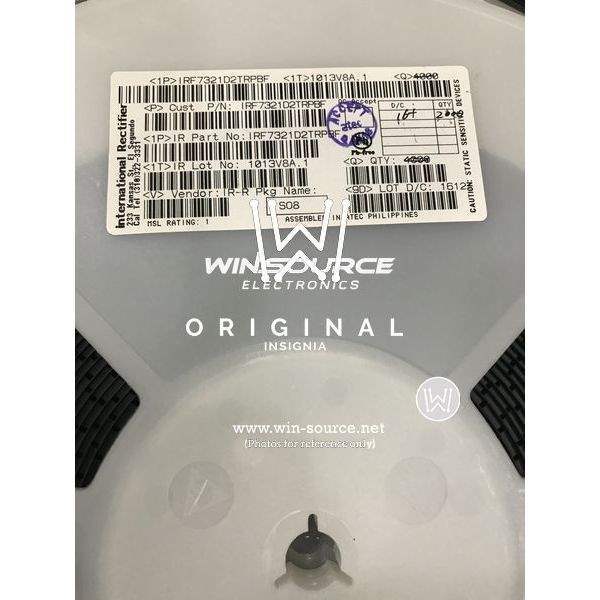

Same model may have multiple batches, images only for reference.

IRF7321D2TRPBF

Name: IRF7321D2TRPBF
Brand: Infineon Technologies
SKU: 159871
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRF7321D2TRPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	Trans MOSFET P-CH Si 30V 4.7A 8-Pin SOIC T/R / MOSFET P-CH 30V 4.7A 8-SOIC
Datasheet	IRF7321D2TRPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Obsolete(EOL)
Polarity	P-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	30V
Continuous Drain Current at 25°C	4.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	1V @ 250μA
Max Gate Charge	34nC @ 10V
Max Input Capacitance	710pF @ 25V
Maximum Gate-Source Voltage	±20V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	2W (Ta)
Maximum Rds On at Id,Vgs	62 mOhm @ 4.9A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	8-SO
Dimension	8-SOIC (0.154", 3.90mm Width)
Win Source Part Number	137122-IRF7321D2TRPBF
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Quantity per package	4k pcs
Family Name	IRF7321D2
Introduction Date	March 17, 1999
ECCN	EAR99
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian IRF7321D2TRPBF CAD Model

Alternative Products

Description

The Infineon Technologies IRF7321D2TRPBF is a P-channel MOSFET with a Schottky diode (isolated) feature.

Drain-Source Breakdown Voltage: 30V
Continuous Drain Current: 4.7A (Ta)
Suitable For: Use in applications that require high power dissipation
Category: Discrete Semiconductor Products
Popularity: High
Supply and Demand Status: Sufficient
Status: Obsolete (EOL)
Estimated EOL Date: Not available
