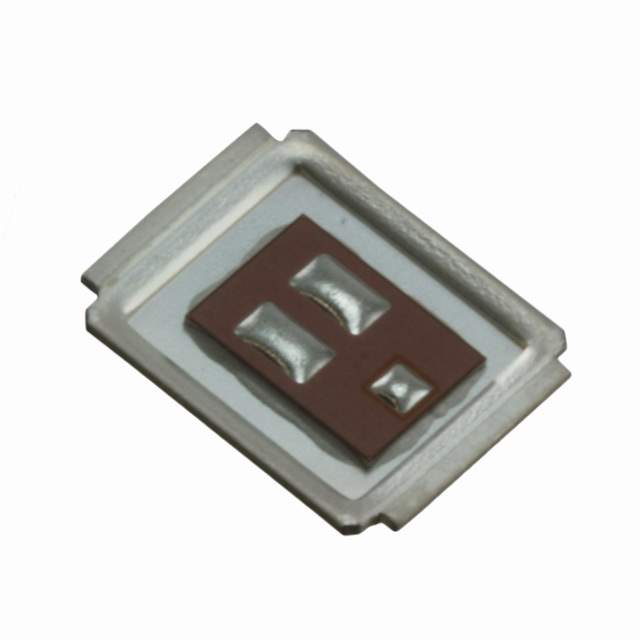

Same model may have multiple batches, images only for reference.

IRF9383MTRPBF

Name: IRF9383MTRPBF
Brand: Infineon Technologies
SKU: 1325353
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IRF9383MTRPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET P-CH 30V 22A DIRECTFET / P-Channel 30 V 22A (Ta), 160A (Tc) 2.1W (Ta), 113W (Tc) Surface Mount DIRECTFET™ MX
Datasheet	IRF9383MTRPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer	Infineon Technologies
Packaging	Reel - TR
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	22A, 160A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.9mOhm @ 22A, 10V
Vgs(th) (Max) @ Id	2.4V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	130 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7305 pF @ 15 V
Power Dissipation (Max)	2.1W, 113W (Tc)
Temperature Range - Operating	-40°C ~ 150°C (TJ)
Mounting	Surface Mount
Supplier Device Package	DIRECTFET™ MX
Case / Package	DirectFET™ Isometric MX
Base Product Number	IRF9383
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Part Number	448-IRF9383MTRPBFTR,IRF9383MTRPBF-ND,448-IRF9383MTRPBFCT,2156-IRF9383MTRPBF-448,448-IRF9383MTRPBFDKR,SP001565700
Standard Package	4,800
Win Source Part Number	1325353-IRF9383MTRPBF
Ultra Librarian 3D Model	Ultra Librarian IRF9383MTRPBF CAD Model

Alternative Products

Description

The Infineon IRF9383MTRPBF is a P-channel MOSFET transistor designed for use in a range of applications, including power supplies, motor control, and lighting.

Drain to Source Voltage: 30V
Continuous Drain Current: 22A @ 25°C
On-Resistance: 2.9mOhm @ 22A
Gate Charge: 130nC @ 10V
RoHS3 compliant: Yes
ECCN: EAR99
