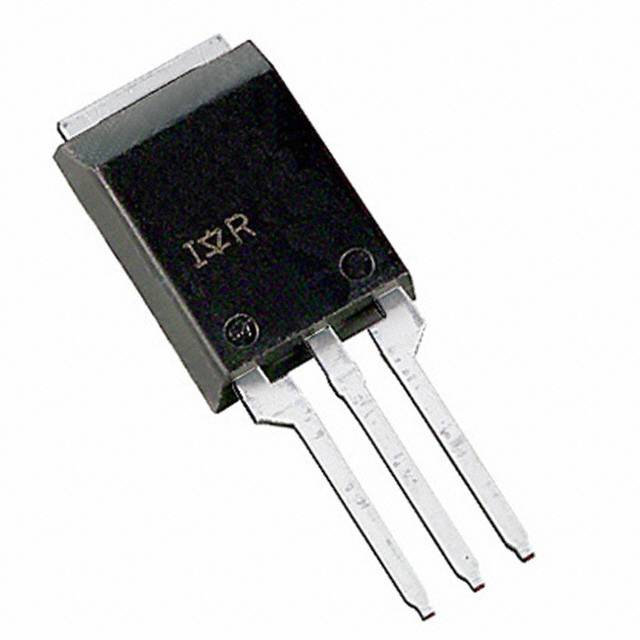

IRFBA90N20D Infineon Technologies
Same model may have multiple batches, images only for reference.

IRFBA90N20D

Part No IRFBA90N20D
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 200V 98A SUPER-220
Datasheet
IRFBA90N20D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 200V
Continuous Drain Current at 25°C 98A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 5V @ 250μA
Max Gate Charge 240nC @ 10V
Max Input Capacitance 6080pF @ 25V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 650W (Tc)
Maximum Rds On at Id,Vgs 23 mOhm @ 59A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package SUPER-220 (TO-273AA)
Dimension Super-220-3 (Straight Leads)
Win Source Part Number 069465-IRFBA90N20D
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IRFBA90N20D CAD Model

Description

The Infineon Technologies MOSFET component has a limited supply and demand status.

  • Win Source Part Number: 069465
  • Drain-Source Breakdown Voltage: 200V
  • Continuous Drain Current: 98A (Tc)
  • Temperature Range: -55°C to 175°C (TJ)
  • Maximum Gate-Source Voltage: ±30V
