Same model may have multiple batches, images only for reference.

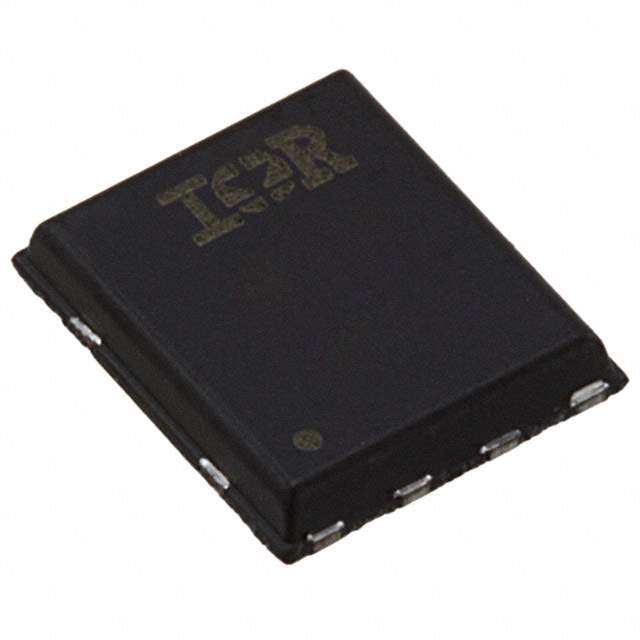

IRFH4201TRPBF Real Image
Same model may have multiple batches, images only for reference.

IRFH4201TRPBF

Part No IRFH4201TRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 25V 49A 8PQFN
Datasheet
IRFH4201TRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 25V
Continuous Drain Current at 25°C 49A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.1V @ 150μA
Max Gate Charge 94nC @ 10V
Max Input Capacitance 6100pF @ 13V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 3.5W (Ta), 156W (Tc)
Maximum Rds On at Id,Vgs 0.95 mOhm @ 50A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-PQFN (5x6)
Dimension 8-PowerVDFN
Win Source Part Number 1046855-IRFH4201TRPBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRFH4201TRPBF CAD Model

Description

The Infineon Technologies IRFH4201TRPBF is an N-channel MOSFET designed for general purpose applications.

  • Drain-Source Breakdown Voltage: 25V
  • Continuous Drain Current: 49A @ 25°C
  • Gate-Source Threshold Voltage: 2.1V @ 150μA
  • Maximum Gate Charge: 94nC @ 10V
  • Maximum Rds On: 0.95 mOhm @ 50A, 10V
  • Power Dissipation: 3.5W (Ta), 156W (Tc)
  • Package: 8-PQFN (5x6)
  • Operating Temperature Range: -55°C to 150°C
