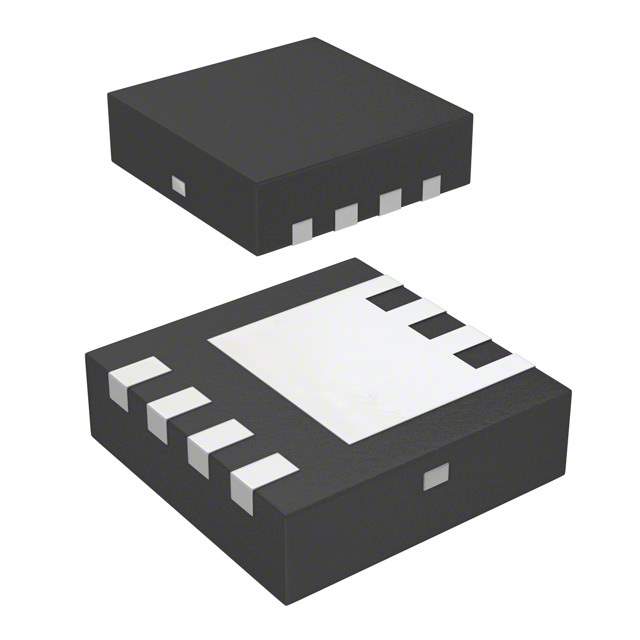

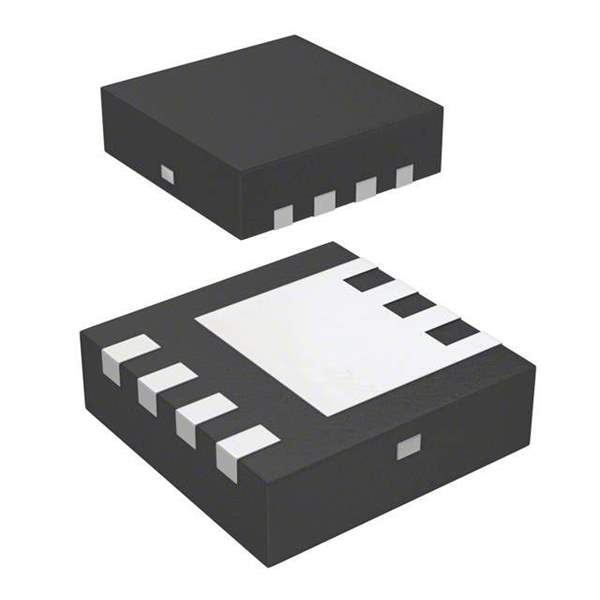

IRFH5300TR2PBF Real Image
Same model may have multiple batches, images only for reference.

IRFH5300TR2PBF

Part No IRFH5300TR2PBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 40A PQFN  /  N-Channel 30 V 40A (Ta), 100A (Tc) Surface Mount PQFN (5x6) Single Die
Datasheet
IRFH5300TR2PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Package Cut Tape (CT),
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 40A (Ta), 100A (Tc)
Rds On (Max) @ Id, Vgs 1.4mOhm @ 50A, 10V
Vgs(th) (Max) @ Id 2.35V @ 150µA
Gate Charge (Qg) (Max) @ Vgs 120 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds 7200 pF @ 15 V
Mounting SMD (SMT)
Supplier Device Package PQFN (5x6) Single Die
Package / Case 8-PowerVDFN
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names IRFH5300TR2PBFCT,SP001556384,IRFH5300TR2PBFDKR,IRFH5300TR2PBFTR
Standard Package 400
Win Source Part Number 1065545-IRFH5300TR2PBF
Ultra Librarian 3D Model Ultra Librarian IRFH5300TR2PBF CAD Model

Description

The Infineon Technologies IRFH5300TR2PBF is a N-channel MOSFET transistor with a drain to source voltage (Vdss) of 30V and a continuous drain current (Id) of 40A (Ta), 100A (Tc).

  • On-Resistance (Max): 1.4mOhm @ 50A, 10V
  • Gate Charge (Qg): 120 nC @ 10V
  • Input Capacitance (Ciss): 7200 pF @ 15V
  • Gate Threshold Voltage (Vgs(th)): 2.35V @ 150μA
  • Package: 8-PowerVDFN
  • Suitable for: Discrete Semiconductor Products, particularly in Transistors - FETs, MOSFETs - Single
