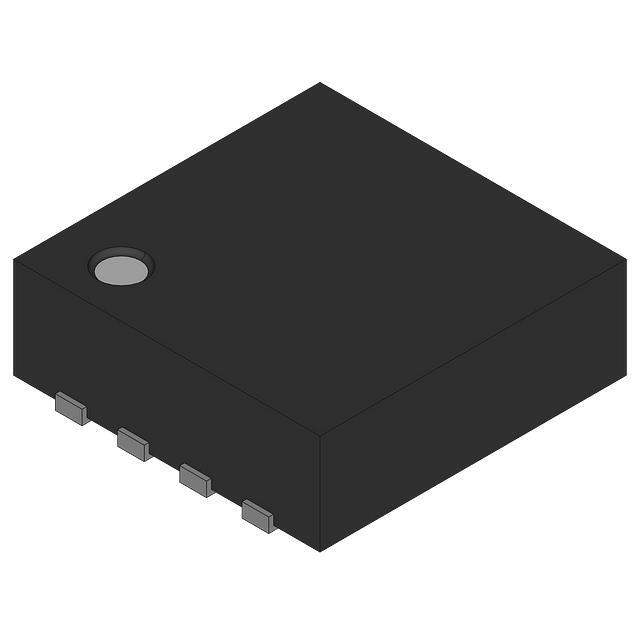

IRFH7936TRPBF Real Image
Same model may have multiple batches, images only for reference.

IRFH7936TRPBF

Part No IRFH7936TRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 20A PQFN
Datasheet
IRFH7936TRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 20A (Ta), 54A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.35V @ 50μA
Max Gate Charge 26nC @ 4.5V
Max Input Capacitance 2360pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 3.1W (Ta)
Maximum Rds On at Id,Vgs 4.8 mOhm @ 20A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PQFN (5x6)
Dimension 8-PowerVDFN
Win Source Part Number 017601-IRFH7936TRPBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRFH7936TRPBF CAD Model

Description

The Infineon Technologies 017601-IRFH7936TRPBF is an N-channel MOSFET designed for use in discrete semiconductor products.

  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current: 20A @ 25°C
  • Gate-Source Threshold Voltage: 2.35V @ 50μA
  • Maximum Gate Charge: 26nC @ 4.5V
  • Maximum Input Capacitance: 2360pF @ 15V
  • Maximum Rds On @ Id,Vgs: 4.8 mOhm @ 20A, 10V
  • Status: Active
  • Temperature Range: -55°C to 150°C (TJ)
  • Package: PQFN (5x6)
  • Popularity: Medium
