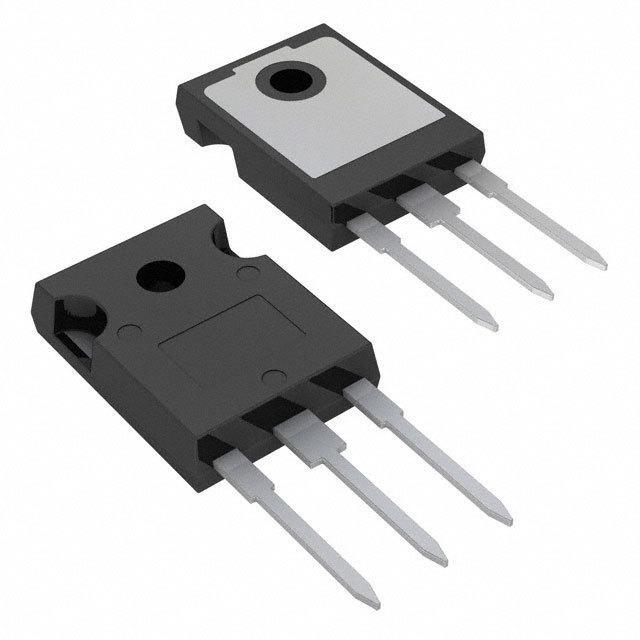

The Infineon Technologies IRFP250MPBF is a MOSFET N-Channel transistor with a package of TO-247-3.

• Power Dissipation (Max): 214W (Tc)
• Product Category: Discrete Semiconductor Product
• ECCN: EAR99
• Operating Temperature Range: -55°C to 175°C (TJ)
• Drive Voltage (Max Rds On, Min Rds On): 10V
• Supply and Demand Status: Balanced
• Dimension: TO-247AC
• Drain-Source Breakdown Voltage: 200V
• Continuous Drain Current at 25°C: 30A (Tc)
• Gate-Source Threshold Voltage: 4V @ 250μA
• Max Gate Charge: 123nC @ 10V
• Max Input Capacitance: 2159pF @ 25V
• Maximum Gate-Source Voltage: ±20V
• Maximum Rds On at Id,Vgs: 75 mOhm @ 18A, 10V
