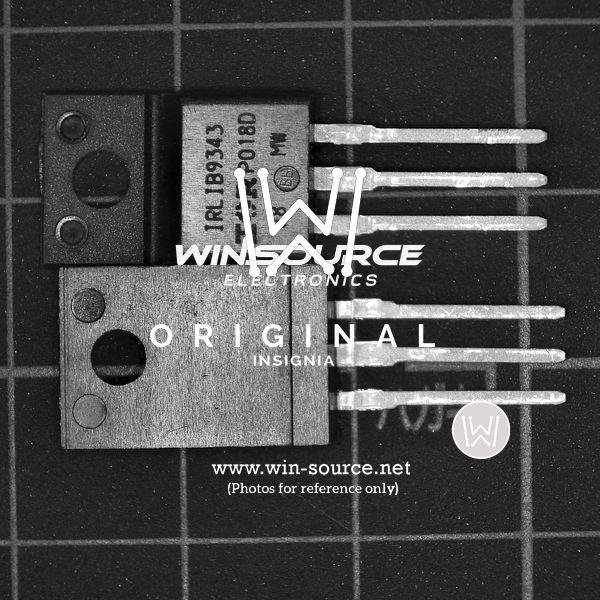

IRLIB9343PBF Real Image IRLIB9343PBF Real Image
Same model may have multiple batches, images only for reference.
IRLIB9343PBF Real Image IRLIB9343PBF Real Image
IRLIB9343PBF Real Image IRLIB9343PBF Real Image
Same model may have multiple batches, images only for reference.

IRLIB9343PBF

Part No IRLIB9343PBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 55V 14A TO220FP
Datasheet
IRLIB9343PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 55V
Continuous Drain Current at 25°C 14A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 47nC @ 10V
Max Input Capacitance 660pF @ 50V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 33W (Tc)
Maximum Rds On at Id,Vgs 105 mOhm @ 3.4A, 10V
Temperature Range - Operating -40°C to 175°C (TJ)
Mounting Through Hole
Case / Package TO-220AB Full-Pak
Dimension TO-220-3 Full Pack
Win Source Part Number 1047559-IRLIB9343PBF
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Power Management, Audio
Ultra Librarian 3D Model Ultra Librarian IRLIB9343PBF CAD Model

Description

The Infineon Technologies IRLIB9343PBF MOSFET is a P-Channel device that is designed for use in power management applications.

  • Polarity: P-Channel
  • Drain-Source Breakdown Voltage: 55V
  • Continuous Drain Current: 14A (Tc)
  • Gate-Source Threshold Voltage: 1V @ 250μA
  • Maximum Gate Charge: 47nC @ 10V
  • Package: TO-220AB Full-Pak
  • Temperature Range: -40°C to 175°C (TJ)
