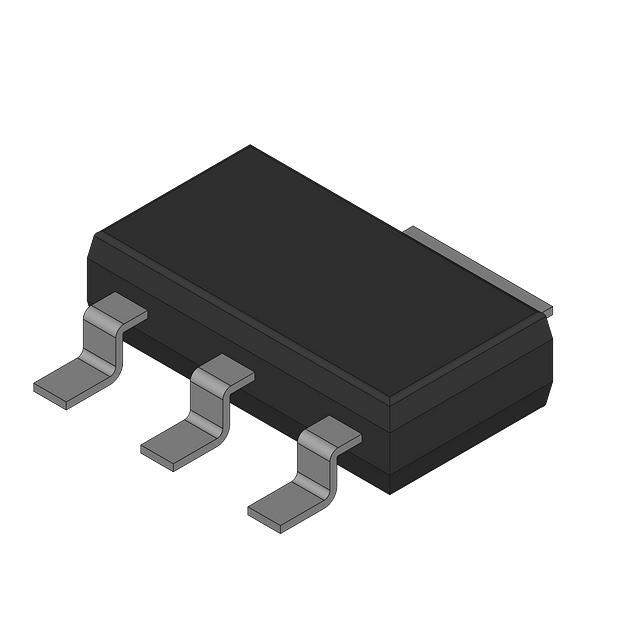

IRLL024ZPBF Real Image
Same model may have multiple batches, images only for reference.

IRLL024ZPBF

Part No IRLL024ZPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 55V 5A SOT-223
Datasheet
IRLL024ZPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Not For New Designs
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 55V
Continuous Drain Current at 25°C 5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 3V @ 250μA
Max Gate Charge 11nC @ 5V
Max Input Capacitance 380pF @ 25V
Maximum Gate-Source Voltage ±16V
Power Dissipation (Max) 1W (Ta)
Maximum Rds On at Id,Vgs 60 mOhm @ 3A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-223
Dimension TO-261-4, TO-261AA
Win Source Part Number 1047566-IRLL024ZPBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRLL024ZPBF CAD Model

Description

The Infineon Technologies 464090 is an N-channel MOSFET transistor designed for use in discrete semiconductor products.

  • Package: SOT-223
  • Power Dissipation: 1W (Ta)
  • Drain-Source Breakdown Voltage: 55V
  • Continuous Drain Current: 5A (Tc) @ 25°C
  • Gate-Source Threshold Voltage: 3V @ 250μA
  • Maximum Gate Charge: 11nC @ 5V
  • Maximum Rds On: 60 mOhm @ 3A, 10V
  • Drive Voltage: 4.5V, 10V
  • Status: not for new designs
  • Temperature Range: -55°C to 150°C (TJ)
