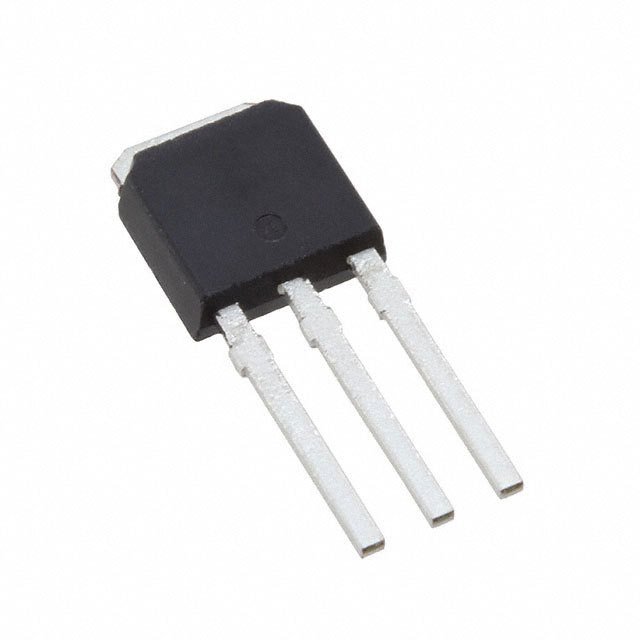

The Infineon Technologies electronic component with the Win Source Part Number 777124-IRLU8721-701PBF is a MOSFET transistor.

• Continuous Drain Current: 65A (Tc)
• Power Dissipation: 65W (Tc)
• Series: HEXFET
• Mounting Type: Through Hole
• Operating Temperature Range: -55°C to 175°C (TJ)
• Package: TO-251-3 Short Leads, IPak, TO-251AA
• Drive Voltage: 4.5V (Max Rds On) and 10V (Min Rds On)
• Channel Type: N
• Drain Source Voltage: 30V
• Vgs(th) (Maximum) @ Id: 2.35V @ 25μA
• Gate Charge (Qg) (Maximum) @ Vgs: 13nC @ 4.5V
• Input Capacitance (Ciss) (Maximum) @ Vds: 1030pF @ 15V
• Vgs (Maximum): ±20V
• Status: Obsolete (EOL)
• Popularity: Medium
