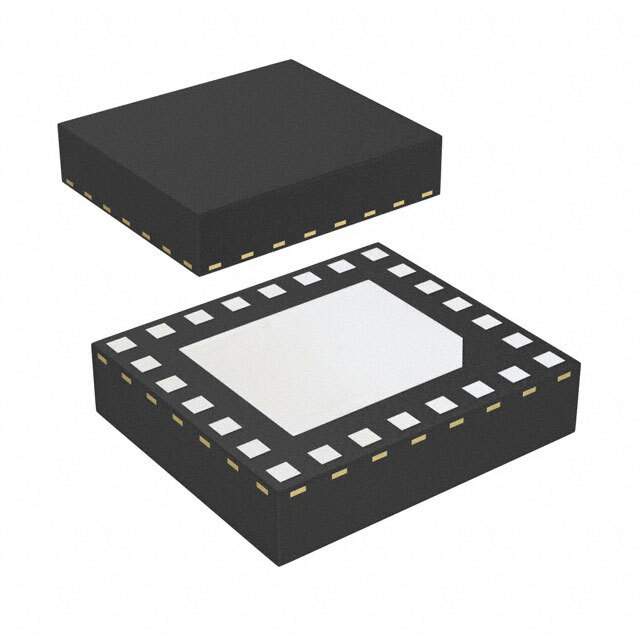

IRSM808-204MH Real Image
Same model may have multiple batches, images only for reference.

IRSM808-204MH

Part No IRSM808-204MH
Manufacturer Infineon Technologies
Catalog PMIC - Full, Half - Bridge Drivers
Description IC MOTOR DRIVER 250V 20A PQFN / Half Bridge Driver AC Motors UMOS 31-PQFN (8x9)
Datasheet
IRSM808-204MH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Full, Half-Bridge Drivers
Mfr Infineon Technologies
Series µIPM™
Package Tray
Output Configuration Half Bridge
Applications AC Motors
Interface Logic
Load Type Inductive
Technology UMOS
Rds On (Typ) 130mOhm
Current - Output / Channel 20A
Voltage - Supply 13.5V ~ 16.5V
Voltage - Load 200V (Max)
Temperature Range - Operating 150°C (TJ)
Features Bootstrap Circuit
Fault Protection UVLO
Mounting SMD (SMT)
Package / Case 31-PowerVQFN
Supplier Device Package 31-PQFN (8x9)
Base Product Number IRSM808
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names SP001541016
Standard Package 260
Win Source Part Number 1065676-IRSM808-204MH
Ultra Librarian 3D Model Ultra Librarian IRSM808-204MH CAD Model

Description

The Infineon Technologies IRSM808-204MH is an Integrated Circuit (IC) categorized under PMIC - Full, Half-Bridge Drivers.

  • Series: µIPM™
  • Bootstrap Circuit: Yes
  • Application: AC motors
  • Standard Package: 260
  • Mounting Type: Surface-mount technology (SMT)
  • Logic Interface: Yes
  • Current Output per Channel: 20A
  • Voltage Load: 200V (Max)
  • Load Type: Inductive
  • Rds On (Typ): 130mOhm
  • Package/Case: 31-PowerVQFN
  • Supplier Device Package: 31-PQFN (8x9)
  • Temperature Range: -55 to 150 °C
  • Alternative Parts: IRSM808-204MHIRSM808-204MHTR and SP001541016
