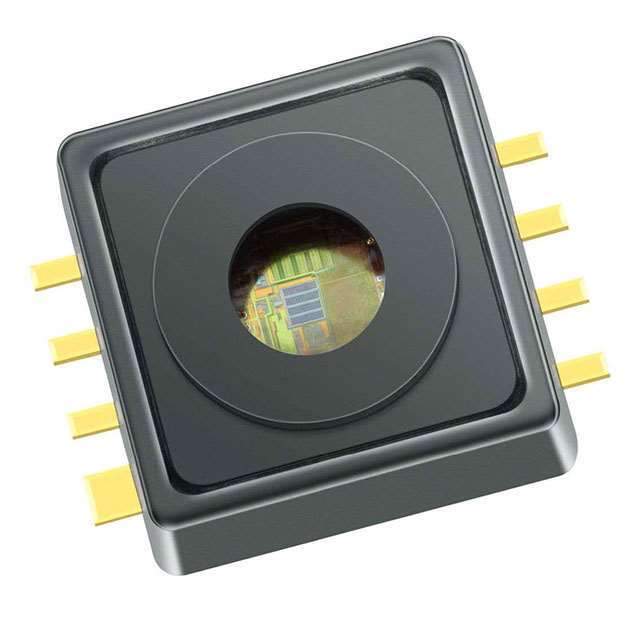

KP215F1701XTMA1 Real Image
Same model may have multiple batches, images only for reference.

KP215F1701XTMA1

Part No KP215F1701XTMA1
Manufacturer Infineon Technologies
Catalog Pressure Sensors, Transducers
Description IC ANLG ABSOLUTE PRES SNSR DSOF8 / Board Mount Pressure Sensor 0.1V to 4.85V 10kPa to 115kPa Absolute Automotive 8-Pin DSOF T/R
Datasheet
KP215F1701XTMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Infineon Technologies
Series Automotive, AEC-Q100
Pressure Type Absolute
Operating Pressure 1.45 PSI ~ 16.68 PSI (10 kPa ~ 115 kPa)
Output Type Analog Voltage
Output 0.4 V ~ 4.65 V
Accuracy ±0.333 PSI (±2.3 kPa)
Operating Supply Voltage 4.5 V ~ 5.5 V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style Surface Mount
Operating Temperature Range -40°C ~ 140°C
Package 8-SMD Module
Win Source Part Number 778011-KP215F1701XTMA1
Popularity Medium
Supply and Demand Status Limited
Family Name KP215F1701
Introduction Date June 28, 2010
ECCN EAR99
Country of Origin Germany
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian KP215F1701XTMA1 CAD Model

Description

The Infineon Technologies KP215F1701XTMA1 is an automotive pressure sensor designed for use in a wide range of automotive applications.

  • Series: KP215F1701
  • Manufacturer: Infineon Technologies
  • Operating Temperature Range: -40°C to 140°C
  • Output: Amplified
  • Compensation: Temperature compensated
  • Package: 8-SMD
  • Output Type: Analog voltage
  • Operating Supply Voltage: 4.5V to 5.5V
  • Output Range: 0.4V to 4.65V
  • Accuracy: ±0.333 PSI (±2.3 kPa)
  • Pressure Measurement: Absolute
  • REACH Compliance: Not affected
  • Halogen Free: Compliant
  • Status: Limited supply and demand
