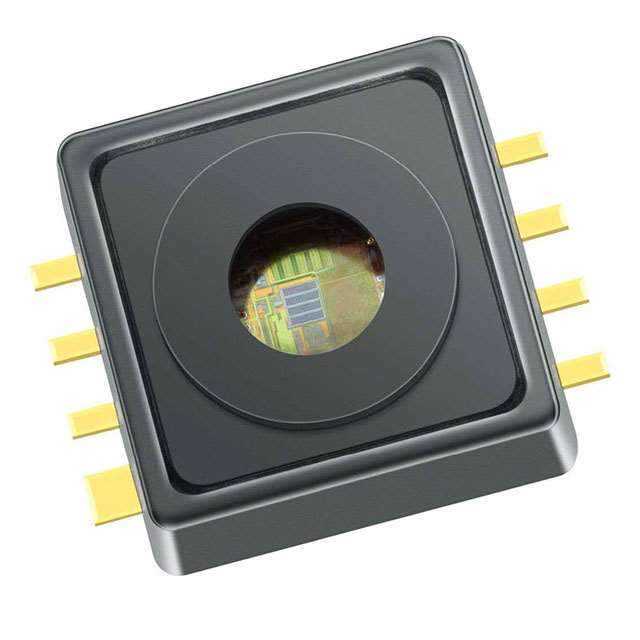

Same model may have multiple batches, images only for reference.

KP234

Name: KP234
Brand: Infineon Technologies
SKU: 170237
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	KP234
Manufacturer	Infineon Technologies
Catalog	Pressure Sensors, Transducers
Description	Pressure Sensor 0.1V to 4.85V 40kPa to 115kPa Absolute Automotive 8-Pin DSOF T/R / IC ANLG BAROMETRIC SNSR DSOF8-16
Datasheet	KP234 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Sensors, Transducers
Manufacturer	Infineon Technologies
Status	Active
Pressure Type	Absolute
Operating Pressure	5.8 PSI to 16.68 PSI (40 kPa to 115 kPa)
Output Type	Analog Voltage
Output	1.33 V to 4.7 V
Accuracy	±0.652 PSI (±4.5 kPa)
Supply Voltage - Operating	4.5 V to 5.5 V
Port Style	No Port
Features	Amplified Output, Temperature Compensated
Termination Style	Surface Mount
Temperature Range - Operating	-40°C to 125°C
Win Source Part Number	040948-KP234
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	KP234
Introduction Date	June 21, 2010
ECCN	EAR99
Country of Origin	Germany
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian KP234 CAD Model

Alternative Products

Description

The Infineon Technologies KP234 is a surface mount pressure sensor that is widely used in sensors and transducers.

Output Type: Analog Voltage
Output Range: 1.33 V to 4.7 V
Accuracy: ±0.652 PSI (±4.5 kPa)
Pressure Type: Absolute
Pressure Range: 5.8 PSI to 16.68 PSI (40 kPa to 115 kPa)
Supply Voltage: 4.5 V to 5.5 V
Halogen-Free: Compliant
Estimated EOL Date: 2027
Popularity: High
Supply and Demand: Balance
