Same model may have multiple batches, images only for reference.

SPA20N60C3

Name: SPA20N60C3
Brand: Infineon Technologies
SKU: 338048
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SPA20N60C3
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 600V 20.7A TO220-3
Datasheet	SPA20N60C3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Tube/Rail
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	600V
Continuous Drain Current at 25°C	20.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Gate-Source Threshold Voltage	3.9V @ 1mA
Max Gate Charge	114nC @ 10V
Max Input Capacitance	2400pF @ 25V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	34.5W (Tc)
Maximum Rds On at Id,Vgs	190 mOhm @ 13.1A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	Through Hole
Case / Package	PG-TO220-3-31 Full Pack
Dimension	TO-220-3 Full Pack
Win Source Part Number	089534-SPA20N60C3
Family Name	SPA20N60C3
Introduction Date	April 02, 2003
ECCN	EAR99
Country of Origin	China, Philippines
Halogen Free	Compliant
Estimated EOL Date	2019
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited

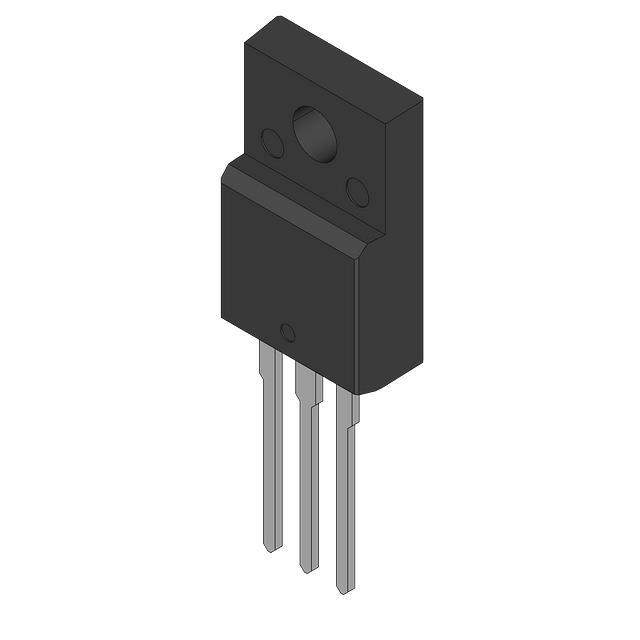

Ultra Librarian 3D Model	Ultra Librarian SPA20N60C3 CAD Model

Alternative Products

Description

The Infineon Technologies MOSFET SPA20N60C3 is a high-popularity electronic component that is limited in terms of supply and demand.

Polarity: N-channel
Maximum Power Dissipation: 34.5W (Tc)
Continuous Drain Current: 20.7A (Tc) @ 25°C
Temperature Range: -55°C to 150°C (TJ)
Case/Package: PG-TO220-3-31 Full Pack
Alternative parts: SiHF22N60E-E3, SIHA22N60E-E3, and SiHF22N60E-GE3
Halogen-free compliant: Yes
