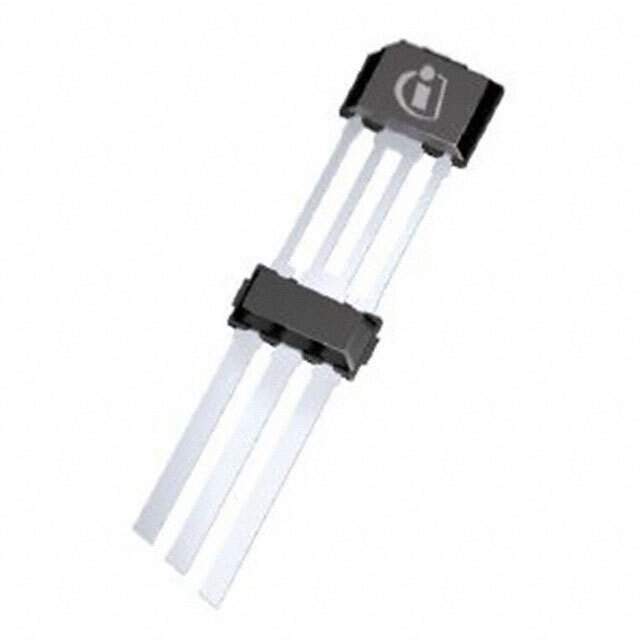

The TLE4928HALA1 is a differential Hall-effect sensor designed and manufactured by Infineon Technologies. This sensor is primarily used for wheel speed sensing in automotive applications, but it also finds use in industrial applications where precise rotational speed or position information is needed. It provides a highly accurate and reliable signal output, even in harsh environmental conditions.

Applications:

• Wheel Speed Sensing (Automotive): Used in Anti-lock Braking Systems (ABS), Electronic Stability Control (ESC), and Traction Control Systems (TCS) to measure wheel speed accurately.
• Camshaft and Crankshaft Position Sensing (Automotive): Provides precise position information for engine control.
• Gear Tooth Sensing (Industrial): Detects the speed and position of rotating gears in industrial machinery.
• Robotics: Used for precise motor control and position feedback in robotic systems.
• Linear Position Sensing: With appropriate mechanical arrangements, it can be used to sense linear movement.

Features:

• Differential Hall Sensor: Provides high immunity to magnetic disturbances.
• High Air Gap Performance: Operates reliably even with a significant air gap between the sensor and the target.
• Wide Operating Temperature Range: Functions reliably in extreme temperature conditions typical of automotive and industrial environments.
• Integrated Reverse Polarity Protection: Prevents damage from incorrect power supply connections.
• Short Circuit Protection: Protects the sensor from damage due to short circuits.

Benefits:

• Accurate Speed and Position Measurement: Provides precise and reliable data for control systems.
• Robust Performance: High immunity to magnetic interference and wide temperature range ensure reliable operation in harsh environments.
• Enhanced Safety: Contributes to the effectiveness of ABS, ESC, and TCS systems in vehicles.
• Simplified System Design: Integrated protection features simplify system design and reduce component count.
• Long Lifespan: Designed for long-term reliability in demanding applications.

Additional Details:

The TLE4928HALA1 operates on a supply voltage typically in the range of 4.5V to 18V. The output signal is typically a digital signal that switches based on the magnetic field detected. The sensor incorporates sophisticated signal processing to minimize the effects of vibration and other disturbances. It is housed in a small surface-mount package suitable for automated assembly. The exact switching thresholds and hysteresis are specified in the datasheet. It's designed to meet stringent automotive quality standards. The device complies with RoHS environmental regulations. Careful mounting and positioning are crucial for optimal performance.
