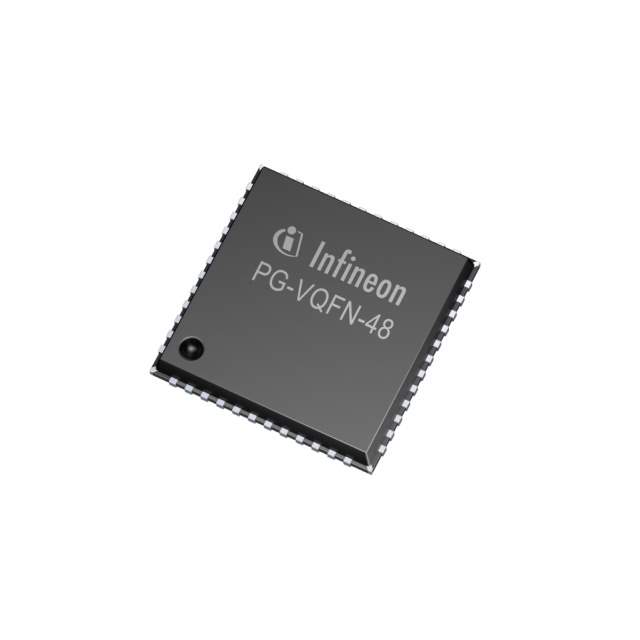

TLE9833QXXUMA1 Real Image
Same model may have multiple batches, images only for reference.

TLE9833QXXUMA1

Part No TLE9833QXXUMA1
Manufacturer Infineon Technologies
Catalog Embedded - Microcontrollers - Application Specific
Description IC MOTOR DRIVER 48VQFN / MCU 8-bit 8051 CISC 48KB Flash 3.3V/5V/9V/12V/15V/18V/24V Automotive 48-Pin VQFN EP T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Infineon Technologies
Packaging Reel package
Part Status Obsolete(EOL)
Applications Automotive
Core Processor XC800
Program Memory Type FLASH (48 kB)
RAM Size 3.25K x 8
Interface LIN, SSI, UART
Number of I/O 11
Operating Supply Voltage 3 V ~ 27 V
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting SMD
Package 48-VFQFN Exposed Pad
Win Source Part Number 797002-TLE9833QXXUMA1
Popularity Medium
Supply and Demand Status Limited
Family Name TLE9833QX
Introduction Date March 19, 2012
ECCN EAR99
Halogen Free Compliant
Ultra Librarian 3D Model Ultra Librarian TLE9833QXXUMA1 CAD Model

Description

The Infineon Technologies TLE9833QXXUMA1 is a part of the TLE9833QX family of integrated circuits.

  • Supply Voltage: 3V to 27V
  • Core Processor: XC800
  • I/Os: 11
  • FLASH Program Memory: 48kB
  • RAM Size: 3.25K x 8
  • Package: 48-VFQFN exposed pad
  • Mounting Type: SMD
  • Operating Temperature Range: -40°C to 150°C (TJ)
  • Interfaces: LIN, SSI, UART
  • Compliance: Halogen-free
  • Status: Obsolete, limited supply
