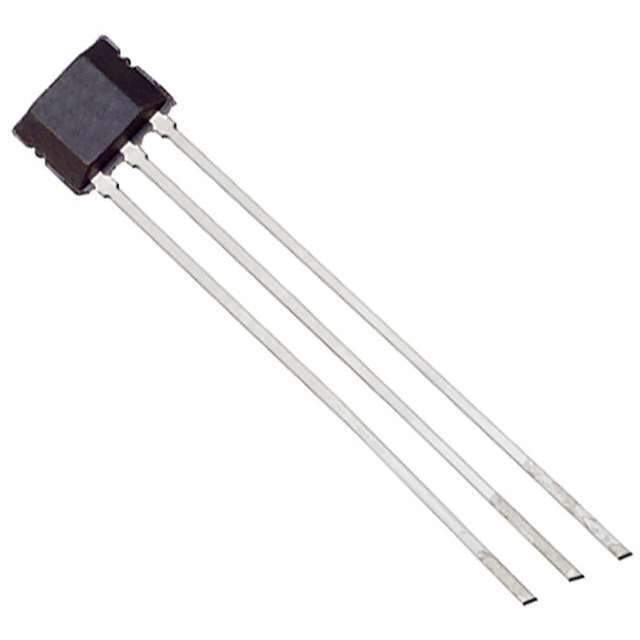

TLI49462LHALA1 Real Image
Same model may have multiple batches, images only for reference.

TLI49462LHALA1

Part No TLI49462LHALA1
Manufacturer Infineon Technologies
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH UNIPOLAR SSO-3 / Hall Effect Sensor 20mA Latch 3.3V/5V/9V/12V/15V 3-Pin SSO Ammo
Datasheet
TLI49462LHALA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Infineon Technologies
Series TLI
Packaging Tape in Box
Function Unipolar Switch
Technology Hall Effect
Polarization South Pole
Sensing Range 3.5mT Trip, -3.5mT Release
Test Condition -40°C ~ 125°C
Operating Supply Voltage 2.7 V ~ 18 V
Maximum Supply Current 6mA
Current - Output (Maximum) 20mA
Output Type Open Drain
Features Temperature Compensated
Operating Temperature Range -40°C ~ 125°C (TA)
Package 3-SIP, SSO-3-02
Manufacturer Package SSO-3
Win Source Part Number 797013-TLI49462LHALA1
Popularity Medium
Supply and Demand Status Limited
Family Name TLI49462LXA
Introduction Date February 06, 2009
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian TLI49462LHALA1 CAD Model

Description

The TLI49462LHALA1 is a Temperature Compensated Unipolar Switch from Infineon Technologies.

  • Series: TLI
  • Package: 3-SIP, SSO-3-02
  • Output Type: Open Drain
  • Supply Voltage: 2.7 V ~ 18 V
  • Technology: Hall Effect
  • Sensing Range: 3.5mT Trip, -3.5mT Release
  • Maximum Supply Current: 6mA
  • Current Output: 20mA
  • Packaging: Tape in box
  • ECCN: EAR99
