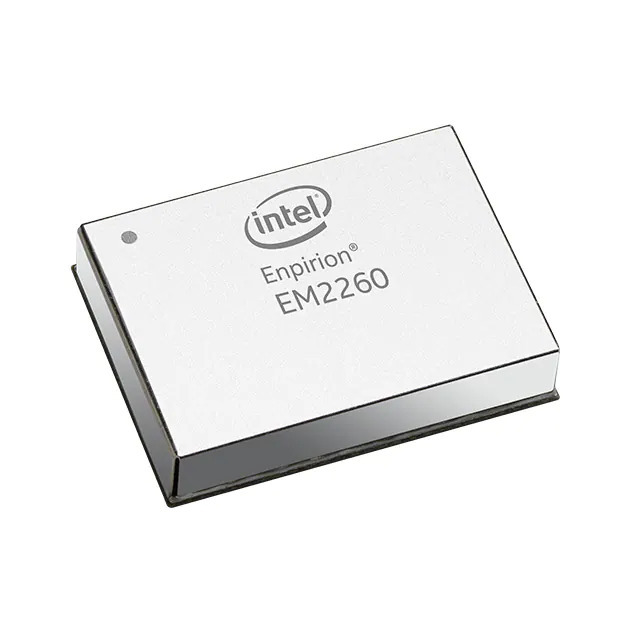

Same model may have multiple batches, images only for reference.

EM2260P01QI

Name: EM2260P01QI
Brand: Intel
SKU: 1354490
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EM2260P01QI
Manufacturer	Intel
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.5-1.3V / Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.5 ~ 1.3V 60A 4.5V - 16V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Intel
Series	Enpirion®
Package	Tray
Product Status	Obsolete
Type	Non-Isolated PoL Module, Digital
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	16V
Voltage - Output 1	0.5 ~ 1.3V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	60A
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	88%
Mounting Type	Surface Mount
Package / Case	152-PowerBFQFN Module
Size / Dimension	0.91" L x 0.71" W x 0.19" H (23.0mm x 18.0mm x 4.9mm)
Supplier Device Package	152-QFN (23x18)
Control Features	Enable, Active High
Base Product Number	EM2260
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.7018
Win Source Part Number	1354490-EM2260P01QI
Ultra Librarian 3D Model	Ultra Librarian EM2260P01QI CAD Model

Alternative Products

Description

The EM2260P01QI is a non-isolated PoL (Point of Load) module from Intel.

Series: Enpirion
Application: Power Supplies - Board Mount - DC-DC Converters
Size: 0.91" L x 0.71" W x 0.19" H
Features: Remote On/Off, Overcurrent Protection, Overtemperature Protection, Undervoltage Lockout
Efficiency: 88%
Maximum Output Current: 60A
