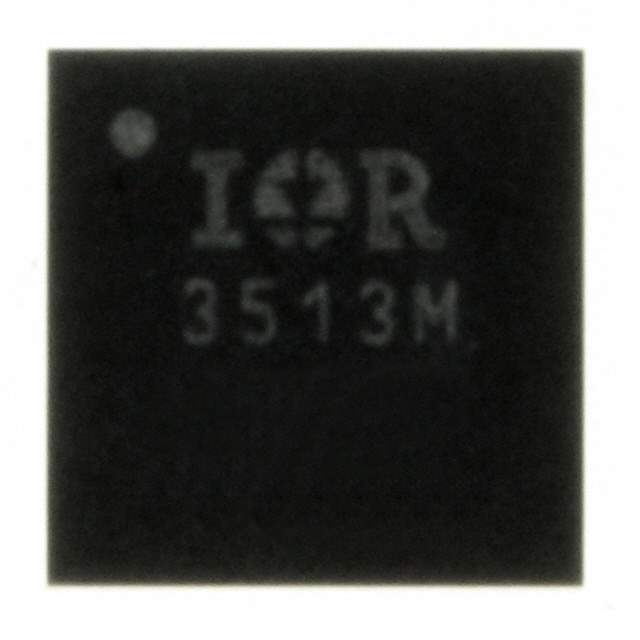

The IR3513M is a synchronous buck regulator from International Rectifier (now Infineon Technologies). It's designed for high-current, single-output power conversion in a variety of applications. This regulator integrates control, gate drive, and MOSFETs into a single package, simplifying design and reducing board space.

Applications:

• Server and Desktop Motherboards: Used for core voltage regulation.
• Graphics Cards: Provides power to the GPU.
• Networking Equipment: Powers ASICs, FPGAs, and other critical components in routers, switches, and other network devices.
• Point-of-Load (POL) Converters: Used in distributed power architectures to provide efficient and precise power to specific loads.
• High-Density Power Supplies: Suitable for applications where space is limited and high efficiency is required.

Features:

• Integrated MOSFETs: Includes both high-side and low-side MOSFETs for synchronous rectification, improving efficiency.
• Wide Input Voltage Range: Typically supports input voltages from 4.5V to 16V.
• Adjustable Output Voltage: The output voltage can be adjusted via external resistors to suit different load requirements.
• Overcurrent Protection (OCP): Protects the regulator and load from excessive current draw.
• Overvoltage Protection (OVP): Prevents the output voltage from exceeding a safe level.
• Thermal Shutdown: Shuts down the regulator if the junction temperature exceeds a predefined limit.
• Enable Input: Allows the regulator to be turned on and off remotely.
• Power Good Output: Indicates when the output voltage is within the specified regulation range.
• High Efficiency: Achieves high efficiency through synchronous rectification and optimized MOSFET design.
• Compact Package: Available in a small footprint package for space-constrained applications.

Benefits:

• Simplified Design: Integration of MOSFETs and control circuitry reduces the number of external components required.
• Improved Efficiency: Synchronous rectification minimizes power losses, leading to higher efficiency and lower operating temperatures.
• Increased Reliability: Built-in protection features such as OCP, OVP, and thermal shutdown enhance the reliability of the system.
• Reduced Board Space: Compact package minimizes the board space required for the power supply.
• Flexibility: Adjustable output voltage allows the regulator to be used in a variety of applications.

Additional Details:

The IR3513M utilizes a constant on-time (COT) control scheme for fast transient response. It also features a soft-start function to limit inrush current during startup. The switching frequency is typically in the range of 300kHz to 600kHz, depending on the application and component selection. It's crucial to consult the datasheet for specific electrical characteristics, thermal performance, and application circuit recommendations. Proper layout and component selection are essential for achieving optimal performance and reliability.
