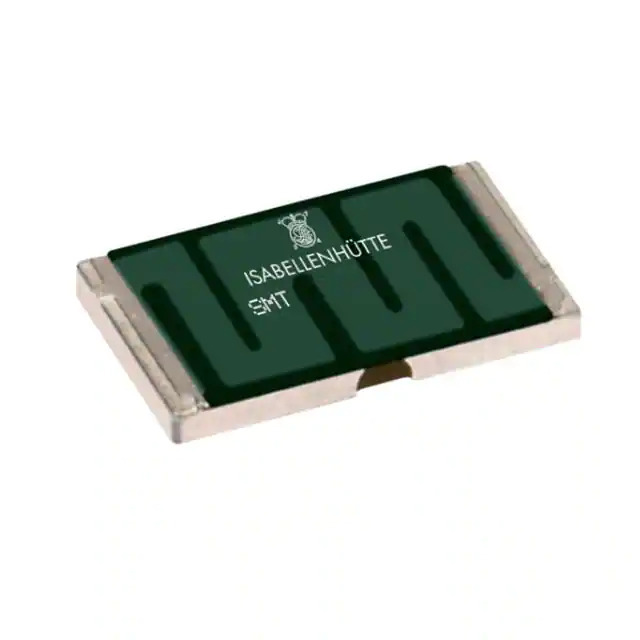

Same model may have multiple batches, images only for reference.
SMT-R005-1.0 Isabellen
Same model may have multiple batches, images only for reference.

SMT-R005-1.0

Part No SMT-R005-1.0
Manufacturer Isabellen
Catalog Chip Resistor - Surface Mount
Description RES 0.005 OHM 1% 7W 2817
Datasheet
SMT-R005-1.0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Isabellenhuette USA
Series SMT
Package Tape & Reel
Product Status Active
Resistance 5 mOhms
Tolerance ±1%
Power (Watts) 7W
Composition -
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case Nonstandard
Supplier Device Package 2817
Ratings AEC-Q200
Size / Dimension 0.280" L x 0.165" W (7.10mm x 4.20mm)
Height - Seated (Max) 0.039" (1.00mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375501-SMT-R005-1.0
Ultra Librarian 3D Model Ultra Librarian SMT-R005-1.0 CAD Model

Description

The SMT-R005-1.0 is a chip resistor manufactured by Isabellenhuette USA.

  • Series: SMT
  • Mounting Type: Surface Mount
  • Package Type: 2817 (Nonstandard)
  • Resistance: 5 mOhms
  • Tolerance: ±1%
  • Temperature Range: -65°C to 170°C
  • AEC-Q200 Compliant: Yes
  • Current Sensing: Yes
  • Moisture Resistance: Yes
  • Pulse Withstand: Yes
  • Size: 0.280" L x 0.165" W (7.10mm x 4.20mm)
  • Maximum Seated Height: 0.039" (1.00mm)
