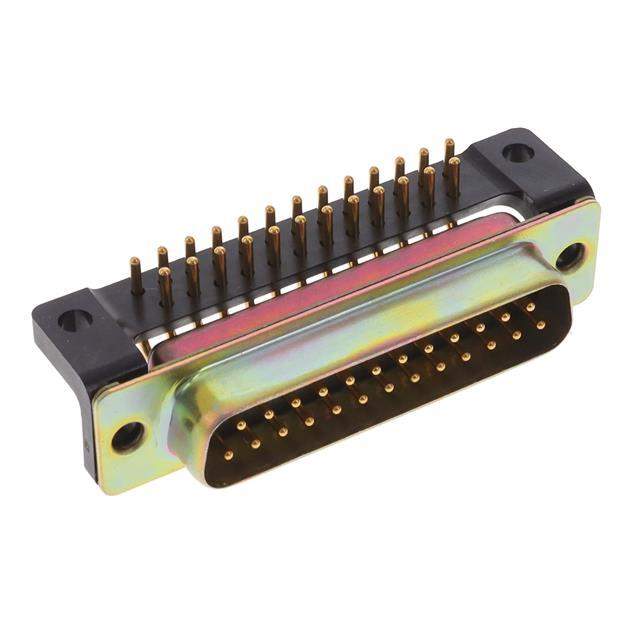

M24308/24-39F Real Image
Same model may have multiple batches, images only for reference.

M24308/24-39F

Part No M24308/24-39F
Manufacturer ITT Cannon, LLC
Catalog D - Sub Connectors
Description CONN D-SUB PLUG 25POS R/A SOLDER / 25 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr ITT Cannon, LLC
Series 24308-Style, D*MM
Package Bulk
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Shell Material, Finish Steel, Yellow Chromate Plated Cadmium
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Current Rating (Amps) 7.5A
Features Mounting Brackets
Dielectric Material Polyester
Temperature Range - Operating -55°C ~ 150°C
Base Product Number M24308/24
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names IM24308/24-39F,1033-M24308/24-39F,M243082439F,IM24308/24-39F-ND,1033-M24308/24-39F-ND,130774-0091 MS,1003-M24308/24-39F
Standard Package 1
Win Source Part Number 1038679-M24308/24-39F
Ultra Librarian 3D Model Ultra Librarian M24308/24-39F CAD Model

Description

The M24308/24-39F is an electronic component manufactured by ITT Cannon, LLC.

  • Component Type: Connector
  • Positions: 25
  • Pin Gender: Male
  • Contact Finish Thickness: 50.0μin (1.27μm)
  • Connector Type: D-sub
  • Voltage Rating: -
  • Ingress Protection: -
  • Mounting Style: Panel Mount, Through-Hole, Right-Angle
