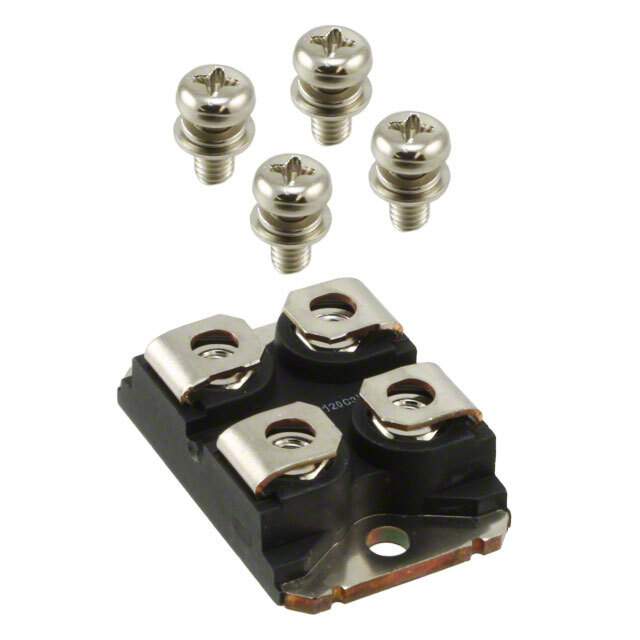

The IXFN20N120P is an N-Channel MOSFET transistor from IXYS that comes in a tube packaging with a standard package of 10. It has a maximum drain to source voltage (Vdss) of 1200V and a continuous drain current (Id) of 20A (Tc) at 25°C.

• Maximum Rds On @ Id, Vgs: 570mOhm @ 10A, 10V
• Maximum Vgs(th) @ Id: 6.5V @ 1mA
• Maximum Power Dissipation: 595W (Tc)
• Gate Charge (Qg) (Max) @ Vgs: 193nC @ 10V
• Input Capacitance (Ciss) (Max) @ Vds: 11100pF @ 25V
• Maximum Vgs: ±30V
• Temperature Range: -55°C to 150°C (TJ)
• Case/Package: SOT-227-4, miniBLOC
• ROHS3 Compliant: Yes
• REACH Regulations: unaffected
