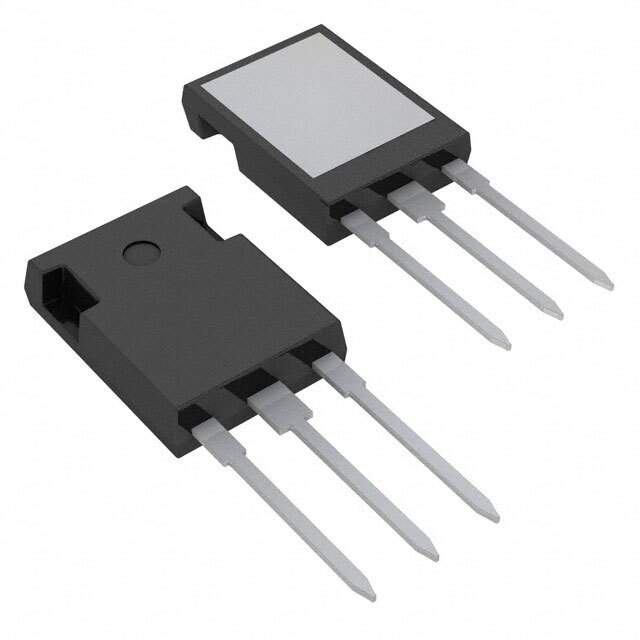

The IXFR20N120P is a N-Channel MOSFET transistor in a TO-247-3 package.

• Drain to Source Voltage (Vdss): 1200 V
• Continuous Drain Current (Id): 13A @ 25°C
• Maximum On-Resistance (Rds On): 630mOhm @ a drain current of 10A and a gate-source voltage (Vgs) of 10V
• Gate Threshold Voltage (Vgs(th)): 6.5V @ a drain current of 1mA
• Maximum Power Dissipation: 290W
• Operating Temperature Range: -55°C to 150°C
• Series: HiPerFET™ and Polar series from IXYS
• Description: The IXFR20N120P is suitable for applications that require high voltage and high current switching, such as power supplies, motor control, and inverters.
