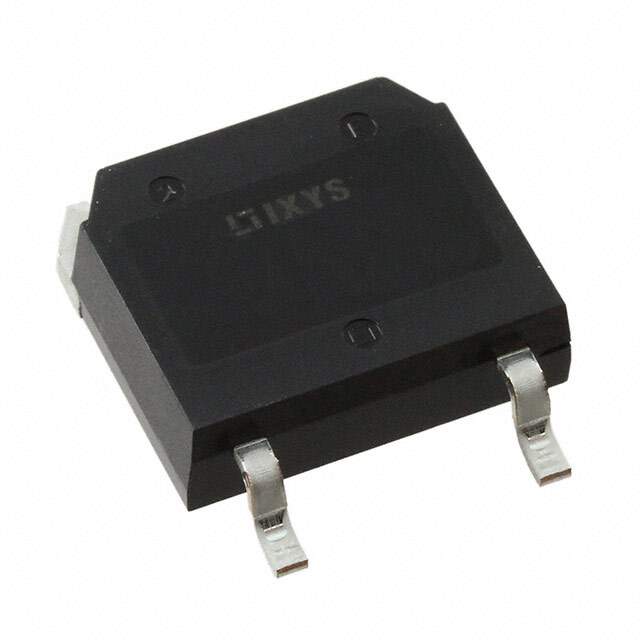

The IXYS IXFT80N65X2HV is a discrete semiconductor product used for transistors.

• Package: tube
• Standard Package: 30
• Technology: MOSFET (Metal Oxide)
• FET Type: N-Channel
• Drain to Source Voltage (Vdss): 650V
• Current: 80A (Tc) @ 25°C
• Power Dissipation (Max): 890W (Tc)
• Gate Charge (Qg) (Max) @ Vgs: 140 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 8300 pF @ 25 V
• Temperature Range of Operation: -55°C ~ 150°C (TJ)
• Case/Package: TO-268-3, D²Pak (2 Leads + Tab), TO-268AA
• MSL Level: 3 (168 Hours)
• Compliance: REACH unaffected
• HTSUS: 8541.29.0095
• Base Product Number: IXFT80
