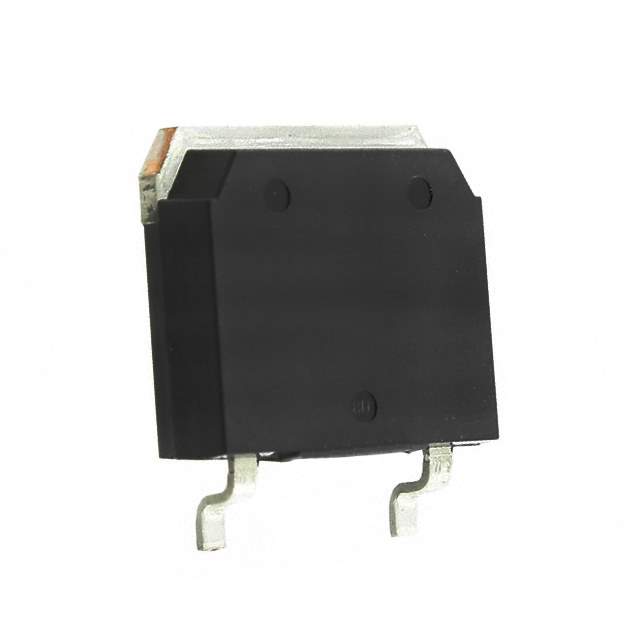

The IXFT88N30P is a MOSFET transistor with N-channel FET type and drain to source voltage of 300 V.

• Continuous Drain Current: 88A @ (Tc)
• Rds On (Max) @ Id, Vgs: 40mOhm @ 44A, 10V
• Gate Charge (Qg) (Max) @ Vgs: 180 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 6300 pF @ 25 V
• Power Dissipation: 600W (Tc)
• Temperature Range: -55°C ~ 150°C (TJ)
• Package / Case: TO-268-3, D²Pak (2 Leads + Tab), TO-268AA
• Supplier Device Package: TO-268AA
• Series: HiPerFET™, Polar series MOSFET transistor
• Mounting Technology: SMD (SMT)
