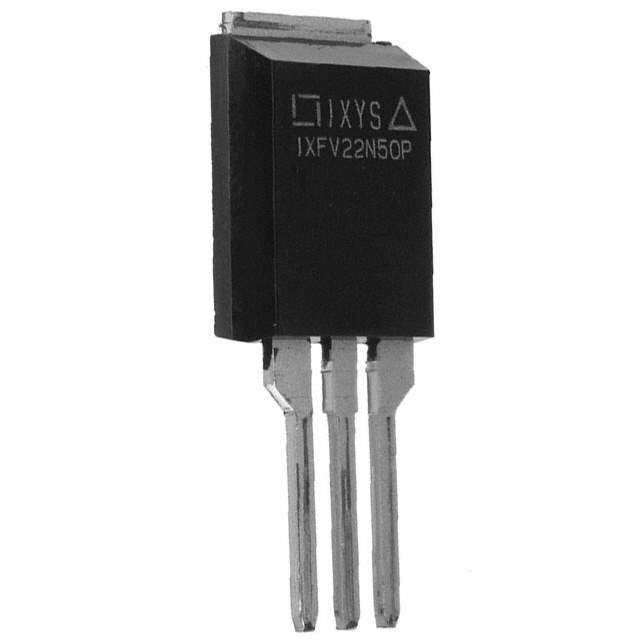

Same model may have multiple batches, images only for reference.

IXFV22N50P

Name: IXFV22N50P
Brand: IXYS
SKU: 608456
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IXFV22N50P
Manufacturer	IXYS
Catalog	Transistors - FETs, MOSFETs - RF
Description	Polar Power MOSFET HiPerFET
Datasheet	IXFV22N50P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	IXYS
Series	HiPerFET, PolarHT
Packaging	Tube
Part Status	Obsolete(EOL)
Channel Type Type	N
Technology	MOSFET
Drain Source Voltage	500V
Current - Continuous Drain (Id) @ 25°C	22A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Vgs(th) (Maximum) @ Id	5.5V @ 2.5mA
Gate Charge (Qg) (Maximum) @ Vgs	50nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds	2630pF @ 25V
Vgs (Maximum)	±30V
Power Dissipation (Maximum)	350W (Tc)
Rds On (Maximum) @ Id, Vgs	270 mOhm @ 11A, 10V
Operating Temperature Range	-55°C ~ 150°C (TJ)
Mounting Style	Through Hole
Manufacturer Package	PLUS220
Package	TO-220-3, Short Tab
Win Source Part Number	1191144-IXFV22N50P
Manufacturer Homepage	www.ixys.com
Popularity	Medium
Supply and Demand Status	Limited
Family Name	IXFV22N50P
Introduction Date	May 10, 2006
ECCN	EAR99
Estimated EOL Date	Obsolete
Ultra Librarian 3D Model	Ultra Librarian IXFV22N50P CAD Model

Alternative Products

Description

The IXYS MOSFET is a N-channel channel type MOSFET with a drain source voltage of 500V and a Vgs(th) (maximum) @ Id of 5.5V @ 2.5mA.

Channel Type: N-channel
Drain Source Voltage: 500V
Vgs(th) (maximum) @ Id: 5.5V @ 2.5mA
Technology: Through hole
Packaging: Tube
Case/Package: TO-220-3, Short Tab
Gate Charge (Qg) (maximum) @ Vgs: 50nC @ 10V
Input Capacitance (Ciss) (maximum) @ Vds: 2630pF @ 25V
Status: Obsolete
Popularity: Medium
Supply and Demand Status: Limited
