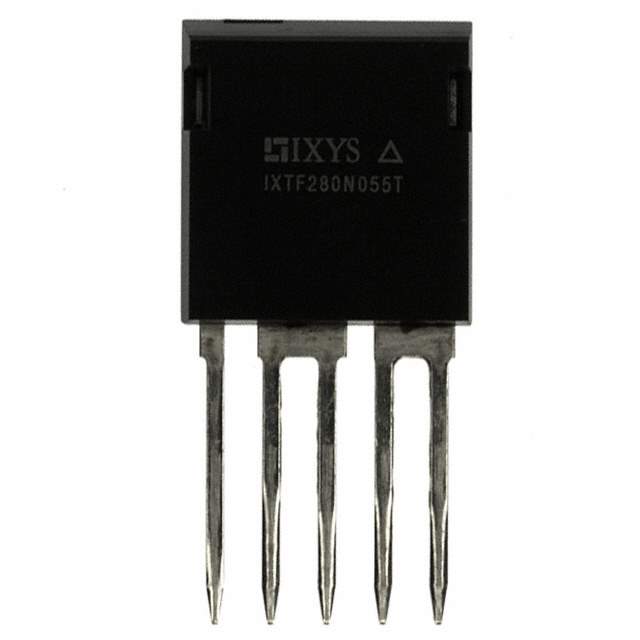

IXTF280N055T Real Image
Same model may have multiple batches, images only for reference.

IXTF280N055T

Part No IXTF280N055T
Manufacturer IXYS
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 55V 160A I4PAC / N-Channel 55 V 160A (Tc) 200W (Tc) Through Hole ISOPLUS i4-PAC™
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr IXYS
Series TrenchMV™
Package Tube
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 55 V
Current - Continuous Drain (Id) @ 25°C 160A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 4mOhm @ 50A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 200 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 9800 pF @ 25 V
Power Dissipation (Max) 200W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package ISOPLUS i4-PAC™
Package / Case i4-Pac™-5
Base Product Number IXTF280
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1346779-IXTF280N055T
Ultra Librarian 3D Model Ultra Librarian IXTF280N055T CAD Model

Description

The IXTF280N055T is a N-Channel MOSFET transistor designed for use in Discrete Semiconductor Products - Transistors - FETs, MOSFETs.

  • Manufacturer: IXYS
  • FET Type: MOSFET
  • Channel Type: N-Channel
  • Series: TrenchMV™
  • Drain to Source Voltage (Vdss): 55 V
  • Power Dissipation (Max): 200W (Tc)
  • Mounting Type: Through Hole
  • Package Type: i4-Pac™-5
  • Package/Case: i4-Pac™-5
  • Operating Temperature Range: -55°C ~ 175°C (TJ)
  • Gate-Source Voltage (Vgs): ±20V
  • Current - Continuous Drain (Id) @ 25°C: 160A (Tc)
  • Rds On (Max) @ Id, Vgs: 4mOhm @ 50A, 10V
  • Status: Obsolete
