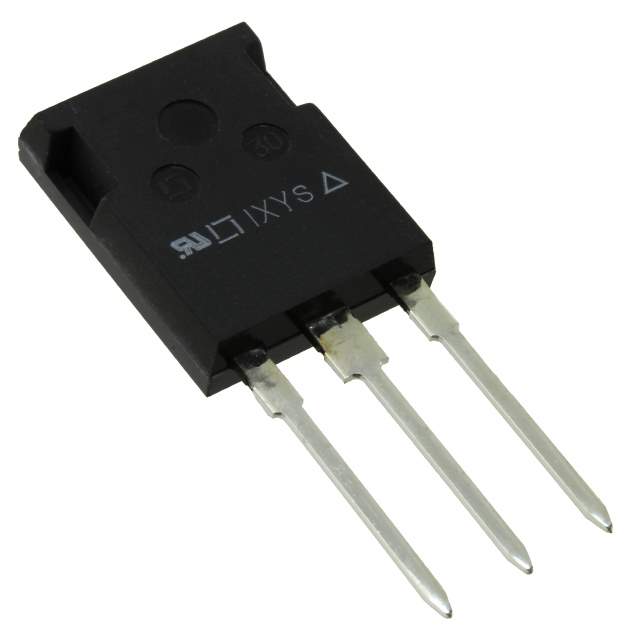

The IXTR102N65X2 is a N-Channel MOSFET (Metal Oxide) with a maximum drain to source voltage of 650V from IXYS.

• Channel Type: N-Channel
• Voltage (Drain to Source) (Max): 650V
• Current (Continuous Drain) (Id) @ 25°C: 54A (Tc)
• Rds On (Max) @ Id, Vgs: 33mOhm @ 51A, 10V
• Vgs(th) (Max) @ Id: 5V @ 250μA
• Power Dissipation (Max) @ Tc: 330W (Tc)
• Gate Charge @ Vgs: 152 nC @ 10V
• Input Capacitance @ Vds: 10900 pF @ 25V
• Vgs (Max): ±30V
• Package: TO-247-3
• Supplier Device Package: ISOPLUS247™
• Product Category: Discrete Semiconductor
• Series: Ultra X2
• Alternative Parts: STW78N65M5, STW77N65M5, IPW65R041CFDFKSA1, STW65N65DM2AG, and TK62N60X,S1F
