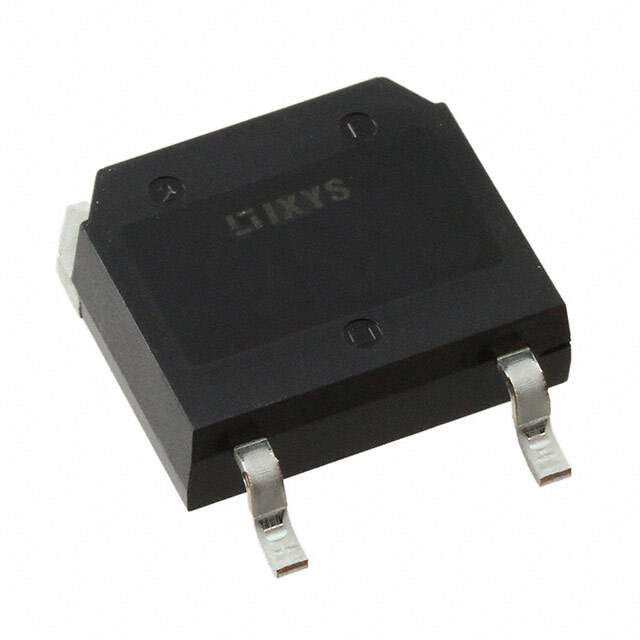

Same model may have multiple batches, images only for reference.

IXTT34N65X2HV

Name: IXTT34N65X2HV
Brand: IXYS
SKU: 1346713
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IXTT34N65X2HV
Manufacturer	IXYS
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 650V 34A TO268HV / N-Channel 650 V 34A (Tc) 540W (Tc) Surface Mount TO-268HV (IXTT)
Datasheet	IXTT34N65X2HV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	IXYS
Series	Ultra X2
Package	Tube
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	34A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	96mOhm @ 17A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	54 nC @ 10 V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	3000 pF @ 25 V
Power Dissipation (Max)	540W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-268HV (IXTT)
Package / Case	TO-268-3, D³Pak (2 Leads + Tab) , TO-268AA
Base Product Number	IXTT34
Standard Package	30
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
California Prop 65	Warning Information
Win Source Part Number	1346713-IXTT34N65X2HV
Ultra Librarian 3D Model	Ultra Librarian IXTT34N65X2HV CAD Model

Alternative Products

Description

The IXTT34N65X2HV is an Ultra X2 N-channel MOSFET manufactured by IXYS.

Maximum Power Dissipation: 540W (Tc)
Package: TO-268-3, D³Pak (2 Leads + Tab) , TO-268AA
Current - Continuous Drain (Id) @ 25°C: 34A (Tc)
Rds On (Max) @ Id, Vgs: 96mOhm @ 17A, 10V
Gate Charge (Qg) (Max) @ Vgs: 54 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 3000 pF @ 25 V
Operating Temperature: -55°C to 150°C (TJ)
Suitable for: power supplies, motor control, and inverters
