Same model may have multiple batches, images only for reference.

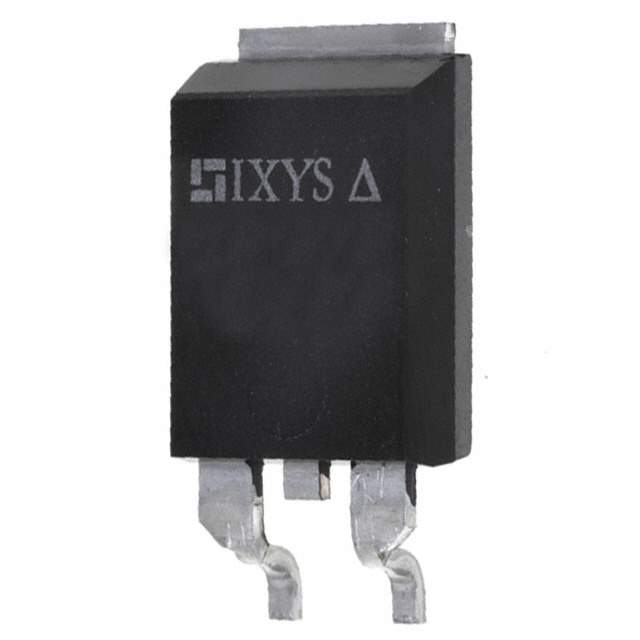

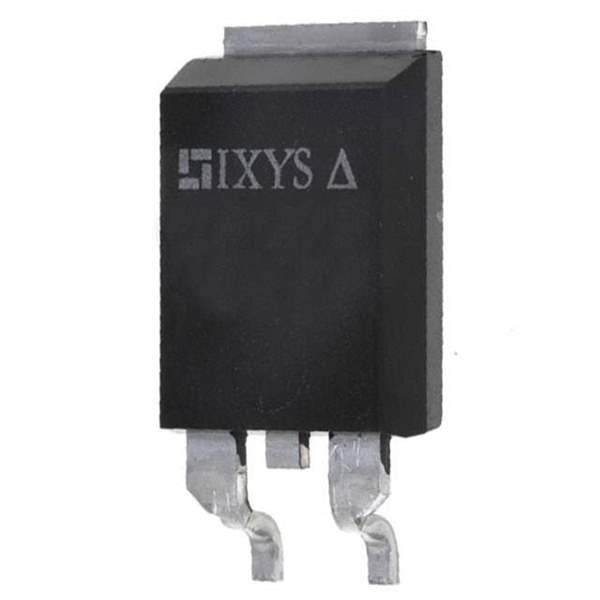

IXTV250N075TS Real Image
Same model may have multiple batches, images only for reference.

IXTV250N075TS

Part No IXTV250N075TS
Manufacturer IXYS
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 75V 250A PLUS-220SMD / N-Channel 75 V 250A (Tc) 550W (Tc) Surface Mount PLUS-220SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr IXYS
Series TrenchMV™
Package Tube
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 75 V
Current - Continuous Drain (Id) @ 25°C 250A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 4mOhm @ 50A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 200 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 9900 pF @ 25 V
Power Dissipation (Max) 550W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PLUS-220SMD
Package / Case PLUS-220SMD
Base Product Number IXTV250
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1346789-IXTV250N075TS
Ultra Librarian 3D Model Ultra Librarian IXTV250N075TS CAD Model

Description

The IXYS 1346789-IXTV250N075TS is a N-channel MOSFET transistor.

  • Maximum Drain to Source Voltage: 75V
  • Continuous Drain Current: 250A
  • Rds On resistance: 4mOhm @ 50A and 10V
  • Maximum Power Dissipation: 550W @ Tc
  • Mounting Type: Surface Mount
  • Package: PLUS-220SMD package
  • Gate Charge: 200 nC @ 10V
  • Input Capacitance: 9900 pF @ 25V
  • Operating Temperature Range: -55°C to 175°C (TJ)
  • Series: TrenchMV™ series
  • Status: Now obsolete
