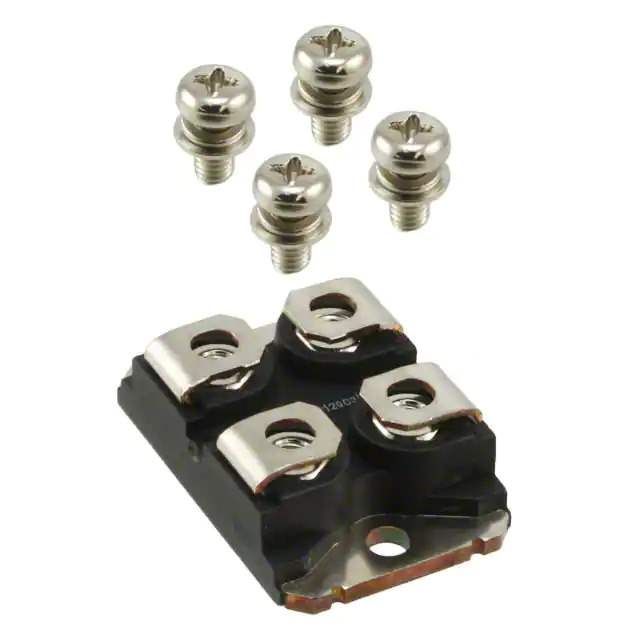

IXYN100N120C3H1 Real Image
Same model may have multiple batches, images only for reference.

IXYN100N120C3H1

Part No IXYN100N120C3H1
Manufacturer IXYS
Catalog IGBTs - Modules
Description IGBT MOD 1200V 134A 690W SOT227B
Datasheet
IXYN100N120C3H1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - IGBT Modules
Mfr IXYS
Series XPT™, GenX3™
Package Tube
Product Status Active
Configuration Single
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 134 A
Power - Max 690 W
Vce(on) (Max) @ Vge, Ic 3.5V @ 15V, 100A
Current - Collector Cutoff (Max) 50 µA
Input Capacitance (Cies) @ Vce 6 nF @ 25 V
Input Standard
NTC Thermistor No
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case SOT-227-4, miniBLOC
Supplier Device Package SOT-227B
Base Product Number IXYN100
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
California Prop 65 Warning Information
Win Source Part Number 847092-IXYN100N120C3H1
Ultra Librarian 3D Model Ultra Librarian IXYN100N120C3H1 CAD Model

Description

The 847092-IXYN100N120C3H1 is an IGBT module from the XPT™, GenX3™ series. It is designed for use in discrete semiconductor products, specifically as a single IGBT.

  • Series: XPT™, GenX3™
  • Configuration: Single IGBT
  • Maximum Power: 690W
  • Collector-Emitter Breakdown Voltage: 1200V
  • Maximum Collector Current: 134A
  • Collector-Emitter Saturation Voltage: 3.5V @ gate-emitter voltage of 15V and collector current of 100A
  • Maximum Collector Cutoff Current: 50µA
  • Input Capacitance: 6nF @ collector-emitter voltage of 25V
  • Mounting Type: Chassis Mount
  • Package: SOT-227-4
  • Operating Temperature: -55°C to 150°C
