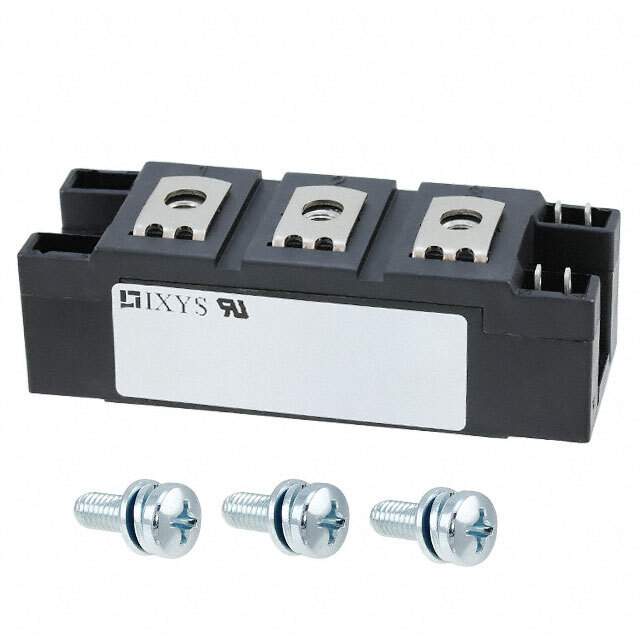

This SCR module is from the MCD162 series and has a part number of MCD162-12IO1.

• Voltage - Off State: 1.2 kV
• Current - Non Rep. Surge 50, 60Hz (Itsm): 6000A, 6400A
• Structure: Series connection - SCR/Diode with 1 SCR and 1 diode
• Current - On State (It (AV) ) (Max): 190 A
• Current - On State (It (RMS) ) (Max): 300 A
• Voltage - Gate Trigger (Vgt) (Max): 2.5 V
• Current - Gate Trigger (Igt) (Max): 150 mA
• Current - Hold (Ih) (Max): 200 mA
• Mounting Type: Chassis Mounted
• Package/Case: Y4-M6
• Operating Temperature: -40°C to 125°C (TJ)
• Packaging: Boxed
• Standard Package: 6
• MSL Level: 1 (unlimited)
• REACH Status: REACH unaffected
• HTSUS code: 8541.30.0080
• Manufacturer: IXYS
