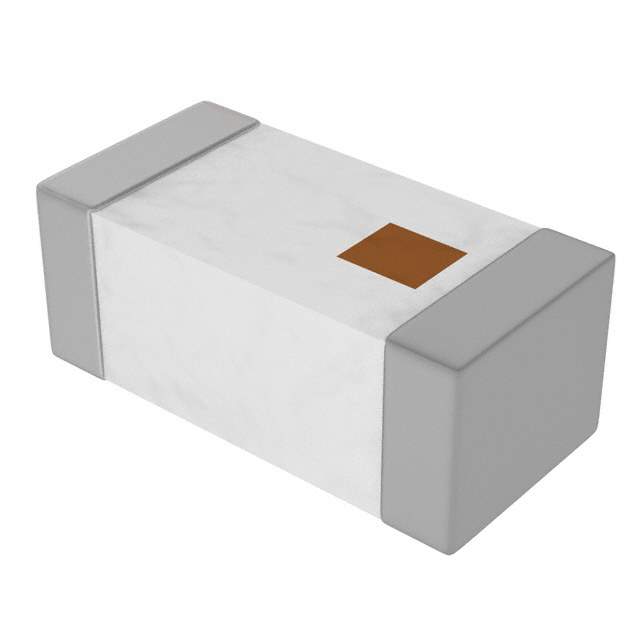

5400AT18A1000E Real Image
Same model may have multiple batches, images only for reference.

5400AT18A1000E

Part No 5400AT18A1000E
Manufacturer Johanson Technology Inc.
Catalog RF Antennas
Description 5.4 GHz Wideband Antenna | RF ANT 5.4GHZ CHIP SOLDER SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Johanson Technology Inc.
Packaging Reel
Frequency Group SHF (f > 4GHz)
Frequency (Center/Band) 5.4GHz
Frequency Range 4.9GHz ~ 5.9GHz
Antenna Type Chip
Number of Bands 1
Return Loss -8.5dB
Gain 2dBi
Maximum Power 500mW
Termination Solder
Mounting Style SMD
Height (Maximum) 0.051" (1.30mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129160-5400AT18A1000E
Manufacturer Homepage www.johansontechnology.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 5400AT18A1000E CAD Model

Description

The Johanson Technology Inc. chip antenna is a high-performance antenna designed for use in RF/IF and RFID applications. It has a frequency range of 4.9GHz ~ 5.9GHz and a return loss of -8.5dB. The antenna type is chip, and it has a gain of 2dBi. The mounting style is SMD, and the termination is solder. The frequency group is SHF (f > 4GHz), and the frequency (center/band) is 5.4GHz. This chip antenna is suitable for use in applications that require a high-performance antenna with a small form factor.
