Same model may have multiple batches, images only for reference.

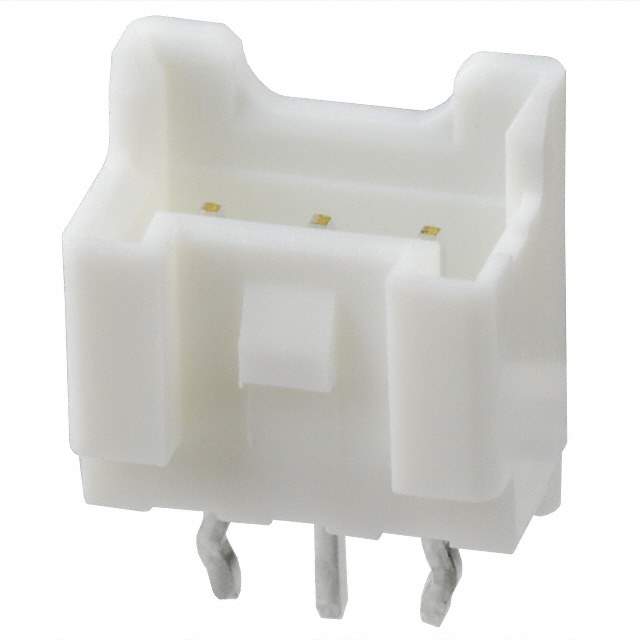

B03B-PASK-1(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B03B-PASK-1(LF)(SN)

Part No B03B-PASK-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 2MM  /  Connector Header Through Hole 3 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PA
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.126" (3.20mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.319" (8.10mm)
Insulation Height 0.303" (7.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 9.9mm, 14.7mm, 14.9mm
Base Product Number B03B-PAS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names (D)B03B-PASK-1(LF)(SN),455-1833,B03BPASK1LFSN
Standard Package 1,000
Win Source Part Number 965752-B03B-PASK-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B03B-PASK-1(LF)(SN) CAD Model

Description

The 965752-B03B-PASK-1(LF)(SN) is a 3-position male pin header connector from the PA series, manufactured by JST Sales America Inc.

  • Pitch: 0.079" (2.00mm)
  • Application: board-to-cable/wire
  • Mounting Type: through hole
  • Fastening Type: locking ramp
  • Contact Termination: kinked pin, solder
  • Shrouded: 4 walls
  • Contact Material: copper alloy
  • Insulation Material: polybutylene terephthalate (PBT), glass filled
  • Temperature Range: -25°C ~ 85°C
  • Package: bulk
  • Standard Package: 1,000
  • Alternative Parts (cross-reference): 89400-0320, 6-440054-3, 53290-0380, 640456-3, 22-23-2031, and 640457-3
