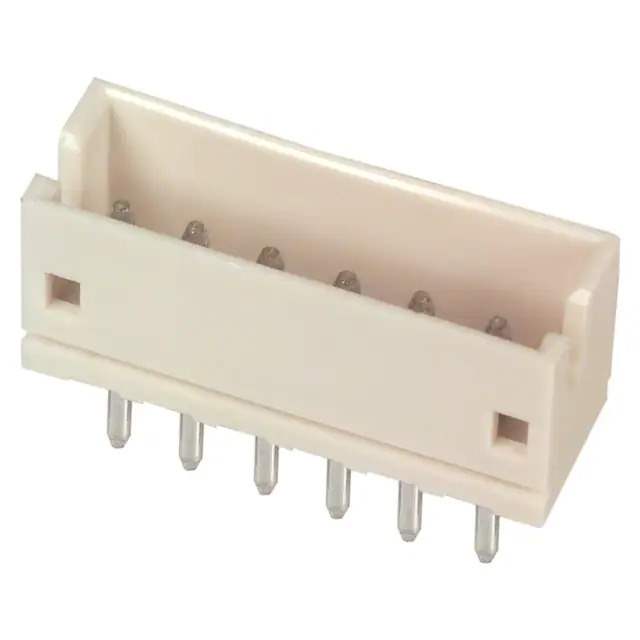

The 851780-B6B-ZR(LF)(SN) is a male pin header connector from the ZH series. The connector is part of the ZH series and is active.

• Connector Type: Header, Male Pin
• Series: ZH
• Number of Positions: 6
• Locking Type: Detent Lock
• Contact Material: Brass
• Voltage Rating: 50V
• Termination: Solder
• Mounting Type: Through Hole
• Mating Type: Board to Cable/Wire
• Mating Pitch: 0.059" (1.50mm)
• Contact Finish - Mating: Tin
• Contact Finish - Post: Tin
• Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
• Operating Temperature: -25°C ~ 85°C
• Packaging: Bulk
• Standard Package: 2,000 pcs
• Overall Contact Length: 0.256" (6.50mm)
• Insulation Height: 0.177" (4.50mm)
• Contact Shape: Circular
• Product Status: Active
