BM10B-SRSS-TB(LF)(SN) Real Image BM10B-SRSS-TB(LF)(SN) real image
Same model may have multiple batches, images only for reference.

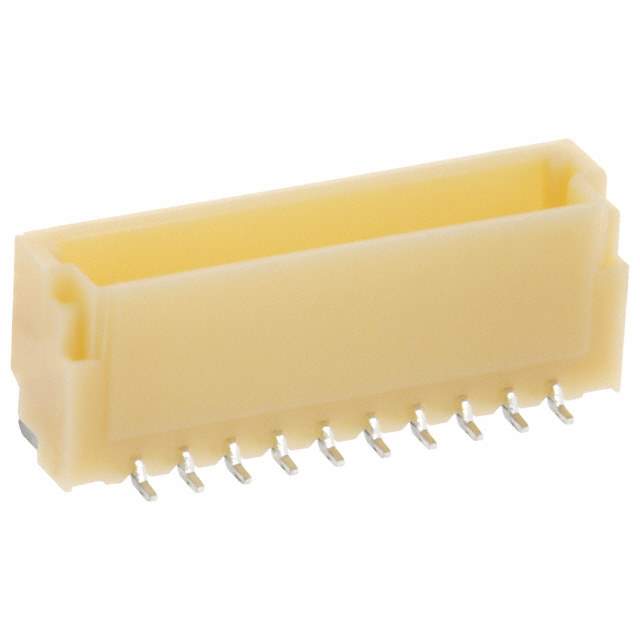

BM10B-SRSS-TB(LF)(SN) Real Image BM10B-SRSS-TB(LF)(SN) real image
BM10B-SRSS-TB(LF)(SN) Real Image BM10B-SRSS-TB(LF)(SN) real image
Same model may have multiple batches, images only for reference.

BM10B-SRSS-TB(LF)(SN)

Part No BM10B-SRSS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SH 10POS TOP 1MM TIN
Datasheet
BM10B-SRSS-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 10
Number of Positions Loaded All
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.167" (4.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 0.7A
Voltage Rating 50V
Mated Stacking Heights 4.9mm
Win Source Part Number 1023659-BM10B-SRSS-TB(LF)(SN)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SH
Introduction Date July 11, 2001
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian BM10B-SRSS-TB(LF)(SN) CAD Model

Description

The BM10B-SRSS-TB(LF)(SN) is a header connector from JST Sales America Inc.

  • Manufacturer: JST Sales America Inc.
  • Product Name: BM10B-SRSS-TB(LF)(SN)
  • Connector Style: Board-to-cable/wire
  • Pitch: 0.039 inches (1.00mm)
  • Positions: 10
  • Current Rating: 0.7A
  • Voltage Rating: 50V
  • Mounting Style: Surface-mounting
  • Design: Shrouded 4-wall
