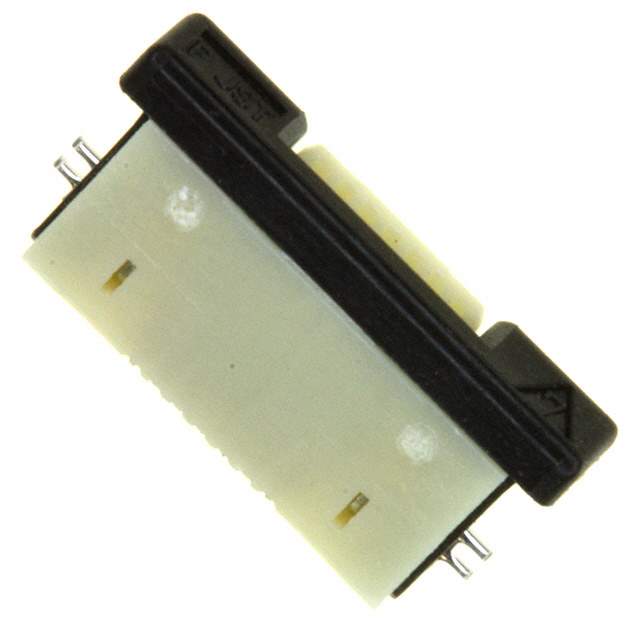

07FLZ-RSM2-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

07FLZ-RSM2-TB(LF)(SN)

Part No 07FLZ-RSM2-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 7POS 0.5MM R/A / 7 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr JST Sales America Inc.
Series FLZ
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 7
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyamide (PA6T) , Nylon 6T
Actuator Material Polyamide (PA6T) , Nylon 6T
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Natural
Actuator Color Black
Base Product Number 07FLZ-RS
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1339225-07FLZ-RSM2-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian 07FLZ-RSM2-TB(LF)(SN) CAD Model

Description

The 1339225-07FLZ-RSM2-TB(LF)(SN) connector is a part of the FLZ series of FFC, FPC (Flat Flexible) Connector Assemblies.

  • Series: FLZ
  • Positions: 7
  • Pitch: 0.020" (0.50mm)
  • Features: Solder Retention, Zero Insertion Force (ZIF)
  • Voltage Rating: 50V
  • Contact Material: Phosphor Bronze
  • Contact Finish: Tin
  • Packaging: Tape & Reel
  • Housing Material: Polyamide (PA6T) and Nylon 6T
  • Mounting: Surface Mount, Right Angle
  • Temperature Range: -25°C to 85°C
