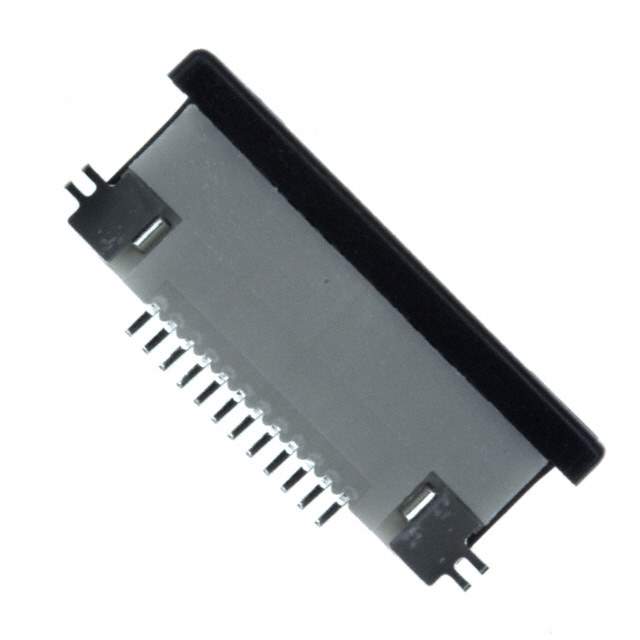

12FLZ-SM2-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

12FLZ-SM2-TB(LF)(SN)

Part No 12FLZ-SM2-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Flat Flex Cables (FFC, FPC)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr JST Sales America Inc.
Series FLZ
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 12
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyamide (PA6T), Nylon 6T
Actuator Material Polyamide (PA6T), Nylon 6T
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Gray
Actuator Color Black
Base Product Number 12FLZ-SM
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1315042-12FLZ-SM2-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian 12FLZ-SM2-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 1315042-12FLZ-SM2-TB(LF)(SN) is a connector that belongs to the FFC, FPC (Flat Flexible) Connectors category.

  • Positions: 12
  • Pitch: 0.020" (0.50mm)
  • Features: Solder Retention, Zero Insertion Force (ZIF)
  • Locking Feature: Slide Lock
  • Contact Material: Phosphor Bronze
  • Housing Material: Polyamide (PA6T), Nylon 6T
  • Mounting Type: Surface Mount, Right Angle
  • Temperature Range: -25°C to 85°C.5A
