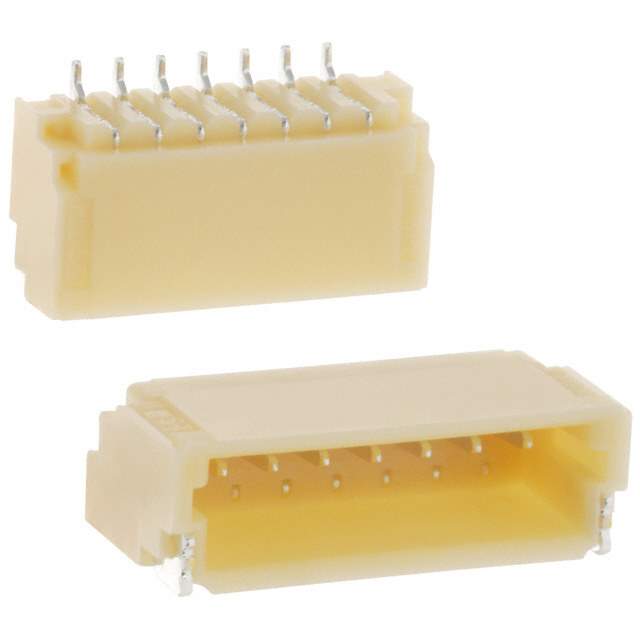

SM07B-SRSS-TB Real Image
Same model may have multiple batches, images only for reference.

SM07B-SRSS-TB

Part No SM07B-SRSS-TB
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 7POS 1MM / 1.0mm pitch/Disconnectable Crimp style connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Reel
Part Status Obsolete (End Of Life)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 7
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.114" (2.90mm)
Contact Shape Square
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 0.7A
Voltage Rating 50V
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805394-SM07B-SRSS-TB
Ultra Librarian 3D Model Ultra Librarian SM07B-SRSS-TB CAD Model

Description

The 805394-SM07B-SRSS-TB is an electronic component manufactured by JST Sales America Inc.

  • Type: Surface mount, right-angle connector
  • Positions: Seven
  • Features: Solder retention
  • Connector Type: Header
  • Contact Type: Male pin
  • Contact Material: Copper alloy
  • Voltage Rating: 50V
  • RoHS Compliant: Yes
  • Insulation Height: 0.114" (2.90mm)
