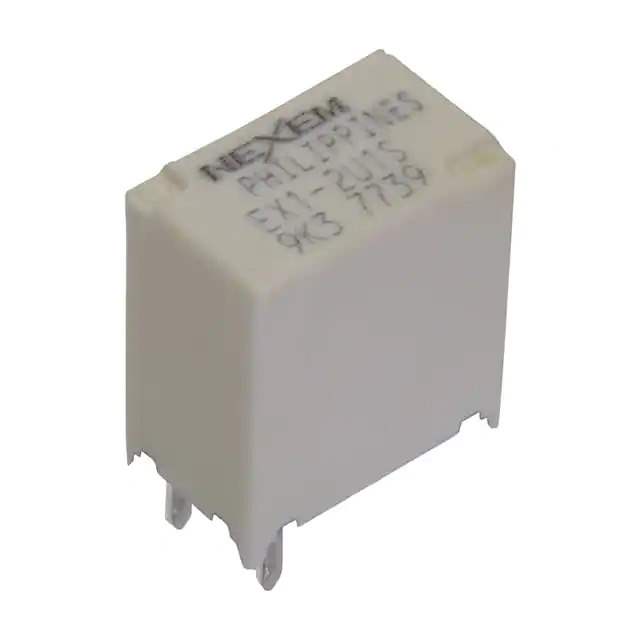

EX1-2U1S Real Image
Same model may have multiple batches, images only for reference.

EX1-2U1S

Part No EX1-2U1S
Manufacturer Kemet
Catalog Automotive Relays
Description AUTO RELAY 1 FORM C 12V
Datasheet
EX1-2U1S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr KEMET
Series EX1
Package Tube
Product Status Active
Coil Type Non Latching
Coil Current 75 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 30 A
Switching Voltage 16VDC - Max
Must Operate Voltage 6.5 VDC
Must Release Voltage 0.9 VDC
Operate Time 2.5 ms
Release Time 3 ms
Features Sealed - Fully
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 125°C
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 900mW
Coil Resistance 160 Ohms
Standard Package 72 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 871312-EX1-2U1S
Ultra Librarian 3D Model Ultra Librarian EX1-2U1S CAD Model

Description

The EX1 series automotive relay is a high-quality component designed for automotive applications.

  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver tin oxide (AgSnO)
  • Coil Voltage: 12VDC
  • Coil Resistance: 160 Ohms
  • Contact Rating: 30A
  • Switching Voltage: 16VDC maximum
  • Feature: Sealed fully
  • Mounting: Through-Hole
  • Temperature Range: -40°C to 125°C
  • Manufacturer: KEMET
  • Status: Active
